Front

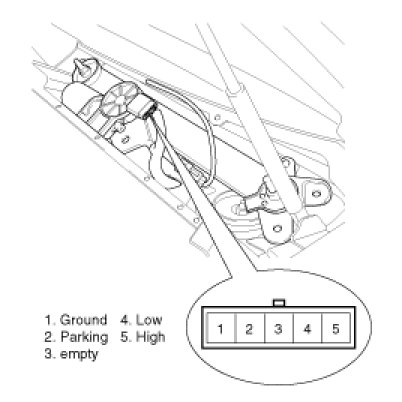

INSPECTIONSPEED OPERATION CHECK 1.
Remove the connector from the
wiper motor.
2.
Attach the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 1.
3.
Check that the motor operates at low speed.
4.
Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 1.
5.
Check that the motor operates at high speed.
