Air Register: Service and Repair

REPLACEMENT

AIR VENT REPLACEMENT

CAUTION:
- When prying with a flat-tip screwdriver, wrap it with protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

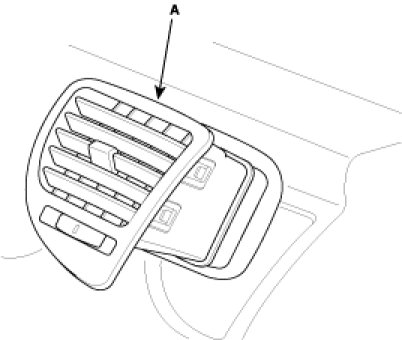

1. Remove the air vent (A) by detaching the clips.
