System Specifications

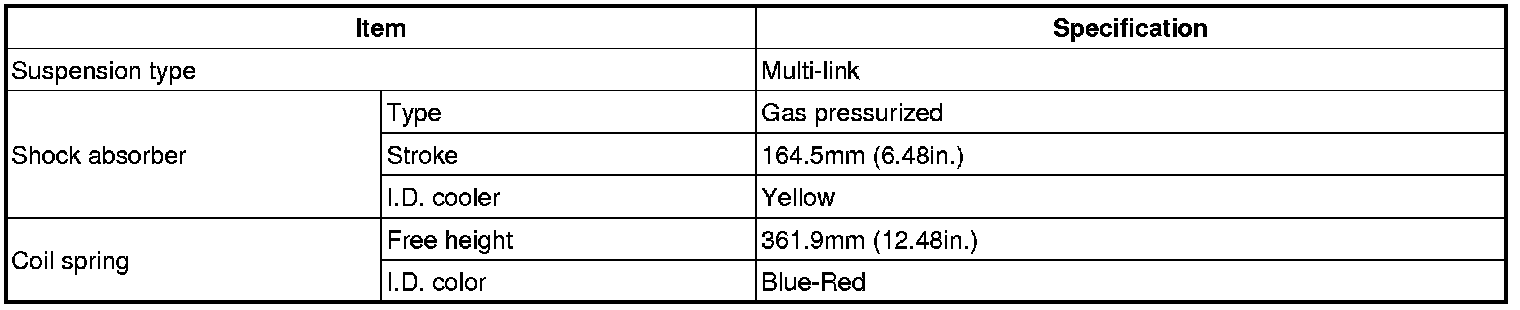

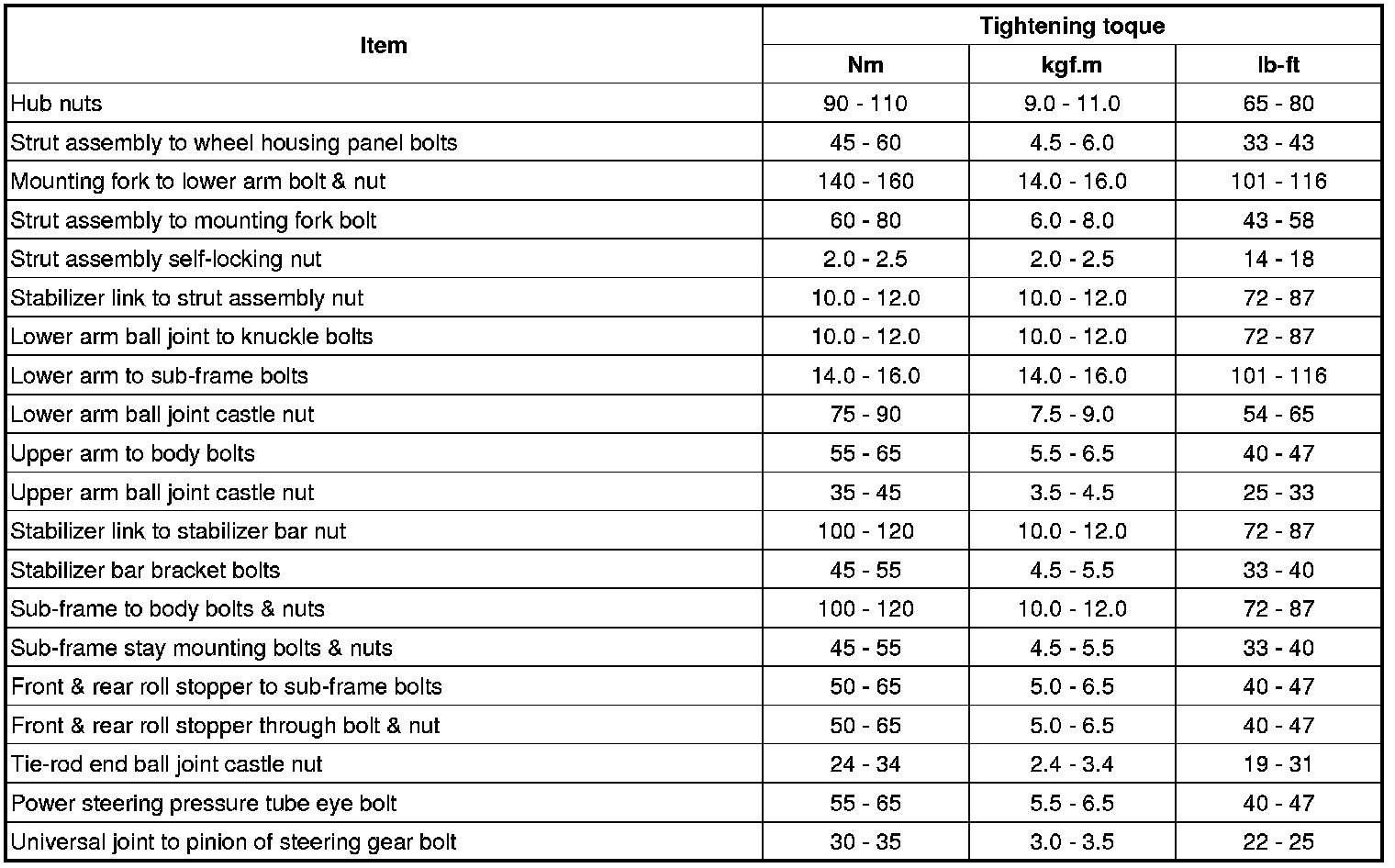

SPECIFICATION

FRONT SUSPENSION





REAR SUSPENSION





FRONT SUSPENSION





REAR SUSPENSION
