Power Mirror Motor: Testing and Inspection
INSPECTION 1.

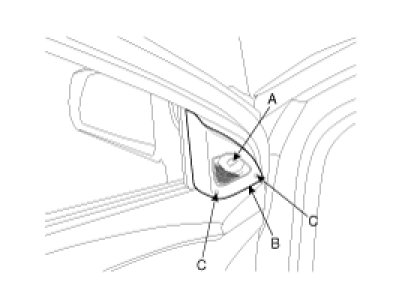

Remove the front door quadrant inner cover (B)
2.
Remove the tweeter speaker after disconnecting the connector(A). Avoid damaging retaining clip (C).
3.

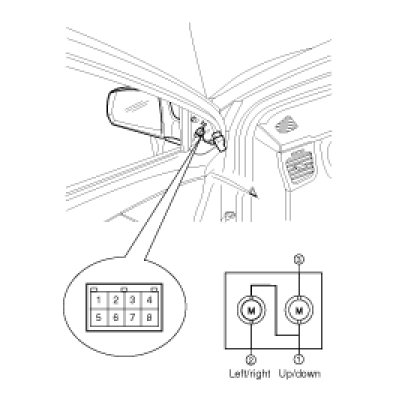

Disconnect the power door mirror connector from the harness.
4.

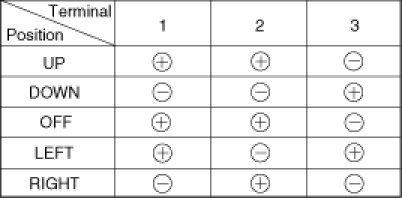

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.

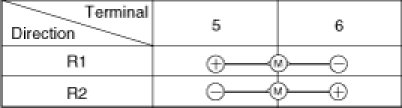

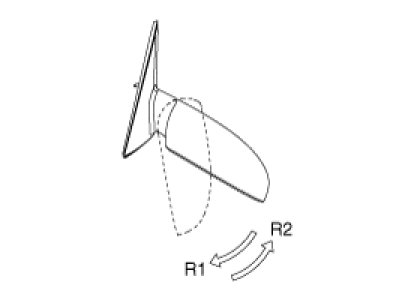

MIRROR HEATERMIRROR FOLDING
