Seat Track: Service and Repair
REPLACEMENTSEAT TRACK REPLACEMENT 1.
Remove the
seat back panel.
2.
Remove the recliner cover, knob and height knob.
3.
Remove the
seat back assembly.
4.
Remove the
seat cushion.
5.

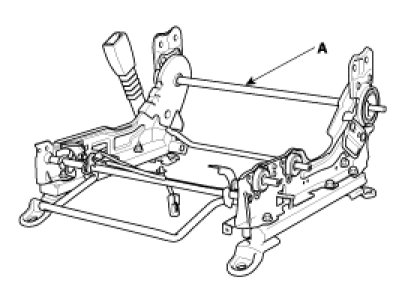

Remove the seat assembly (A).
6.
Installation is the reverse of removal.
