Windshield Washer Motor: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

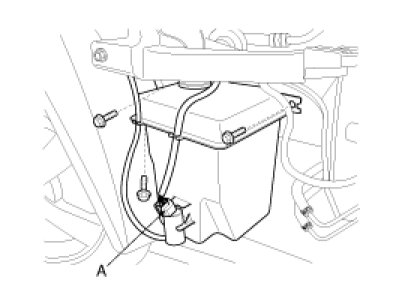

3. Remove the washer hose and the washer motor connector (A).
4. Remove the washer reservoir after removing 3 bolts.

5. Installation is the reverse of removal.
