Front
INSPECTION 1.

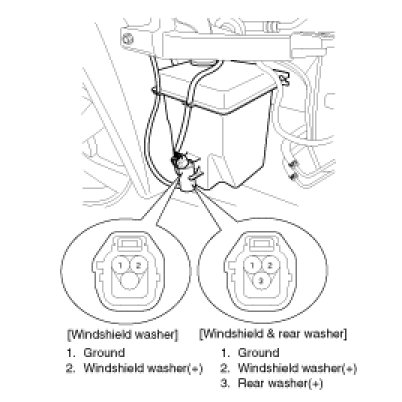

With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
2.

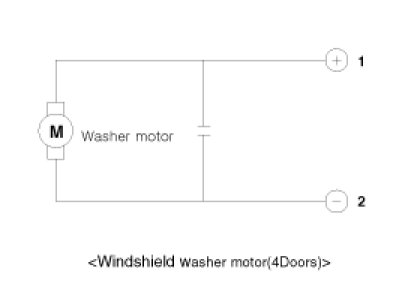

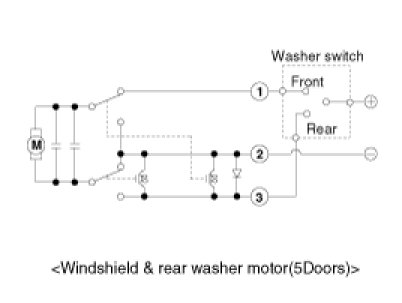

Connect positive (+) battery cables to terminal 2 and negative (-) battery cables to terminal 1 respectively.
3.
Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
4.
If they are abnormal, replace the washer motor.
