Repair Procedures

REPLACEMENT

- Refer to the components illustration during removal or installation.

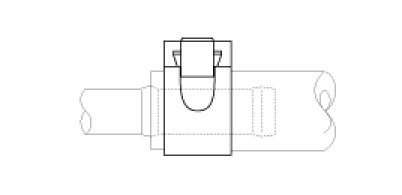

- When installing, be sure to connect between hose to tube using a clamp as shown in the illustration.

- Check all clamps for deterioration or deformation; replace with the clamps new one if necessary.
- Add the recommended power steering fluid and bleed the power steering system.
