Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2008
>>
Rondo V6-2.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
System Overview Diagram
System Overview Diagram

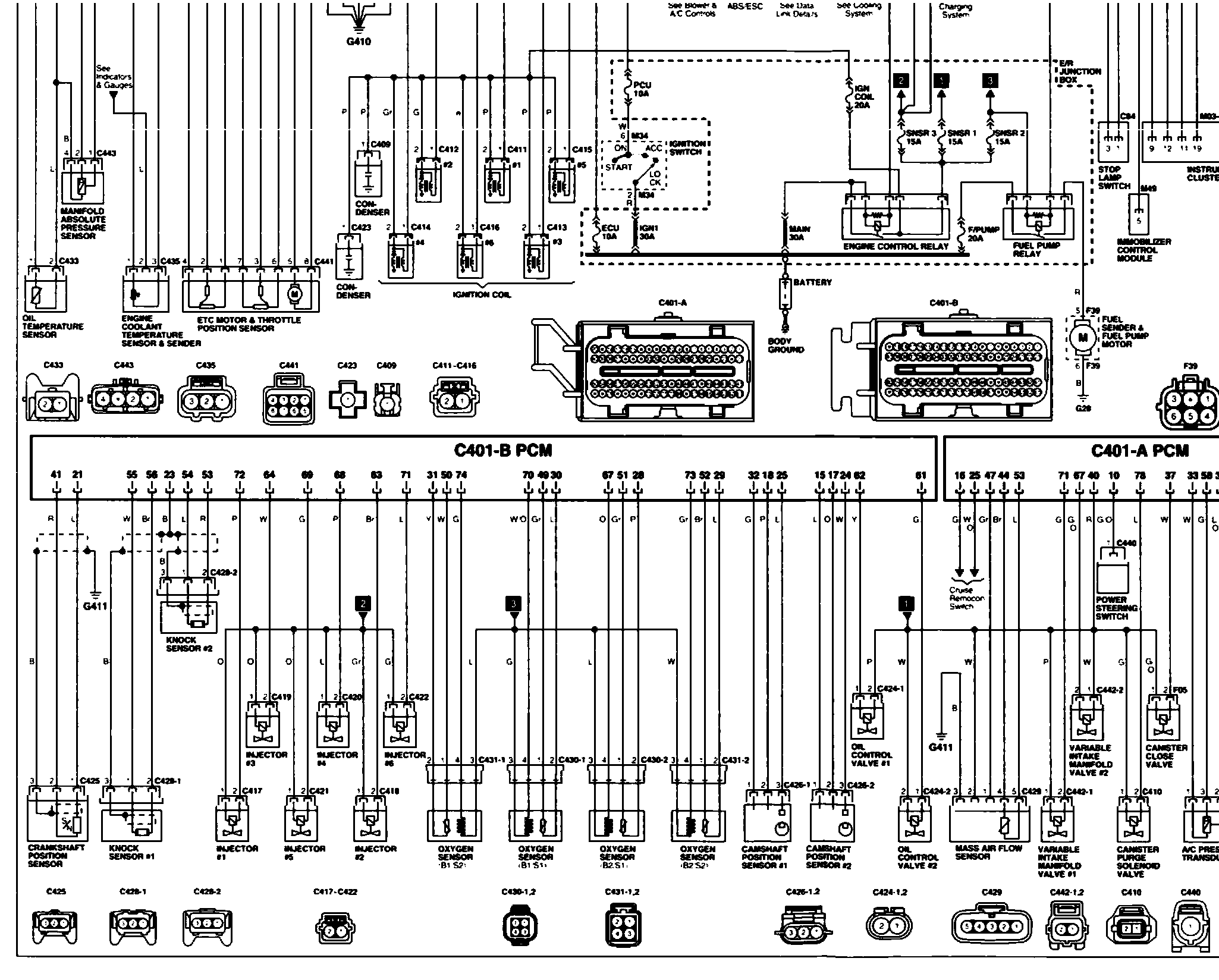

�[Yl��Yl�YlFull Circuit Diagram:
