Sliding Door Lock Switch

INSPECTION

SLIDING DOOR LOCK SWITCH
1. Remove the sliding door trim panel.

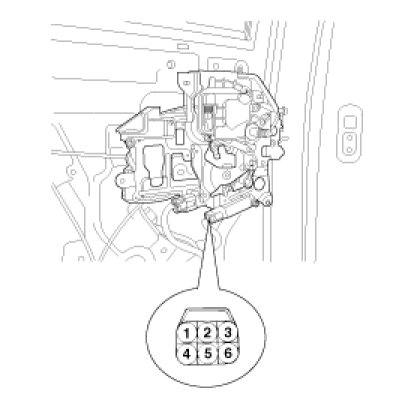

2. Disconnect the 6P connector from the actuator.

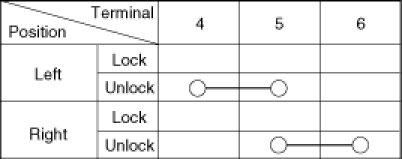

3. Check for continuity between the terminals in each switch position according to the table.
