Repair Procedures

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad center lower side cover.

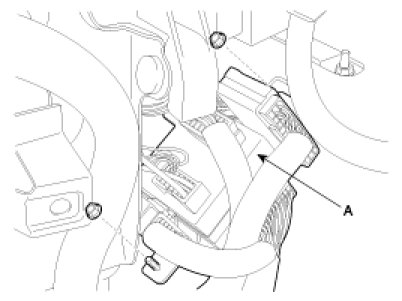

3. Loosen the relate box mounting nut, and then remove the relay box(A).

4. Install in the reverse order of removal.
