Repair Procedures
REPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering column upper and lower shrouds (A) after removing 3 screws.
3.

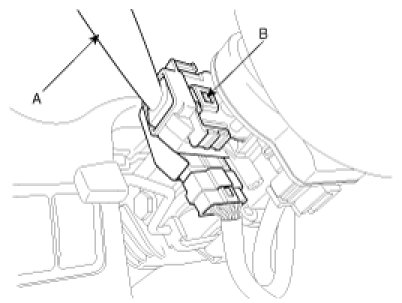

Disconnect the light switch(A) connector and pin(B).
4.
Remove the
wiper switch (A) after disconnecting the connector and pin(B).
5.
Installation is the reverse of removal.
