Repair Procedures

REPLACEMENT

1. Drain the power steering fluid.

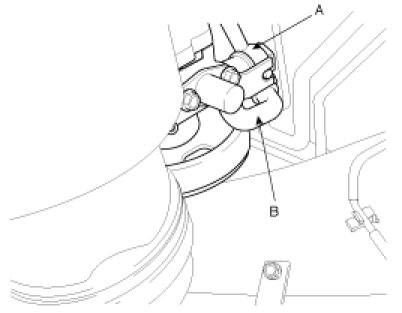

2. Disconnect the pressure tube (A) and suction tube (B) from the power steering oil pump.

Tightening torque Nm (kgf.m, lb-ft):
55 - 65 (4.5 - 5.5, 40 - 47)

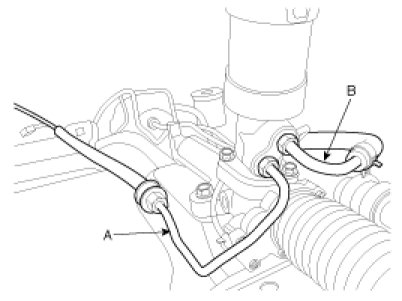

3. Disconnect the pressure tube (A) and return tube (B) from the valve body housing.

Tightening torque Nm (kgf.m, lb-ft):
12 - 18 (1.2 - 1.8, 9 - 13)

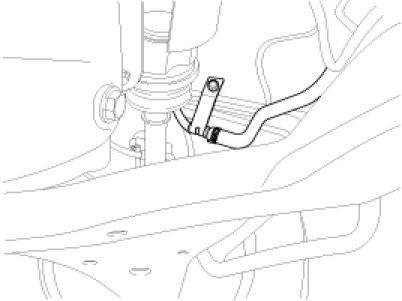

4. Remove the brackets of the pressure tube and hose from the sub-frame.

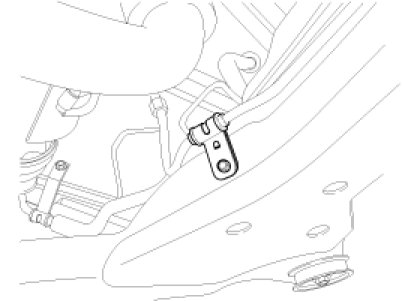

5. Remove the bracket of the return tube and hose.




6. Remove the under cover and then loosen the oil cooler tube bracket bolts.

NOTE:

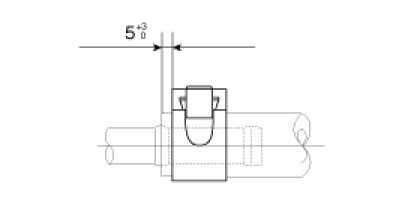

Be sure to connect between a tube and a hose as shown in the illustration.




7. Installation is the reverse of removal.
8. After installation, bleed the power steering system.
