REMOVAL

1. Remove the lower crash pad.

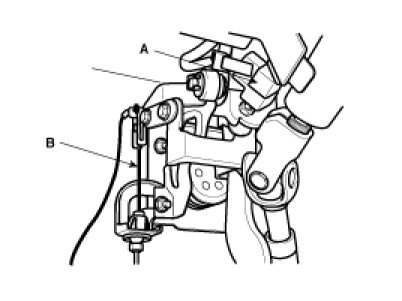

2. Remove the stop lamp switch connector (A).
3. Remove the shift lock cable (B)(A/T).




4. Remove the pin and snap pin.
5. Remove the brake pedal member assembly mounting nuts and then remove the brake pedal assembly.

INSTALLATION

1. Installation is the reverse of removal.

CAUTION:
Coat the inner surface of the bushings with the specified grease.

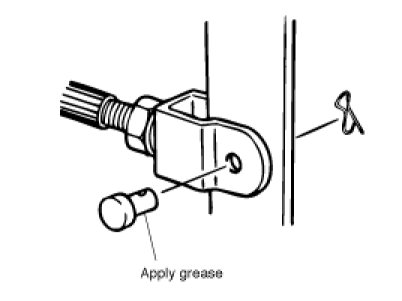

2. Before inserting the pin, apply the specified grease to the joint pin.




3. Adjust the brake pedal height and free play.
4. Install the stop lamp switch.
