Brake Warning Indicator: Testing and Inspection

INSPECTION

BRAKE FLUID LEVEL WARNING LAMP
1. Start the engine.
2. Release the parking brake.

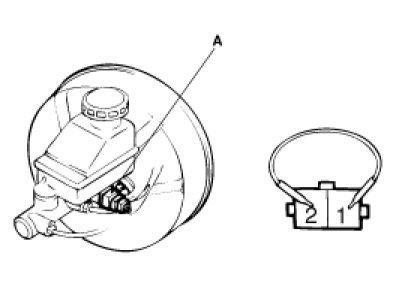

3. Remove the connector from the brake fluid level warning switch (A).
4. Ground the connector at the harness side.
5. Verify that the warning lamp lights.
