Blower Motor Resistor: Testing and Inspection











INSPECTION

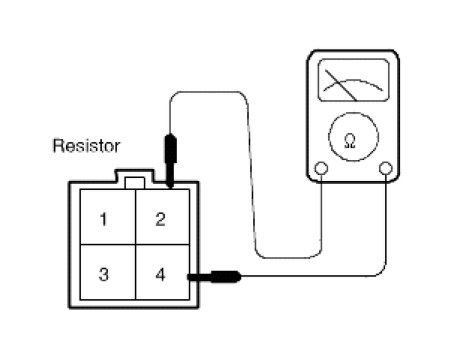

1. Measure terminal-to-terminal resistance of the blower resistor.

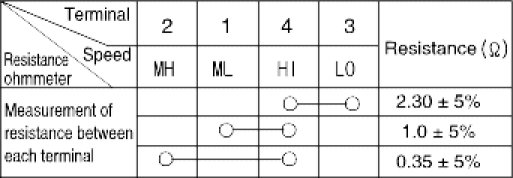

2. If measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)
