Drive Axles, Bearings and Joints

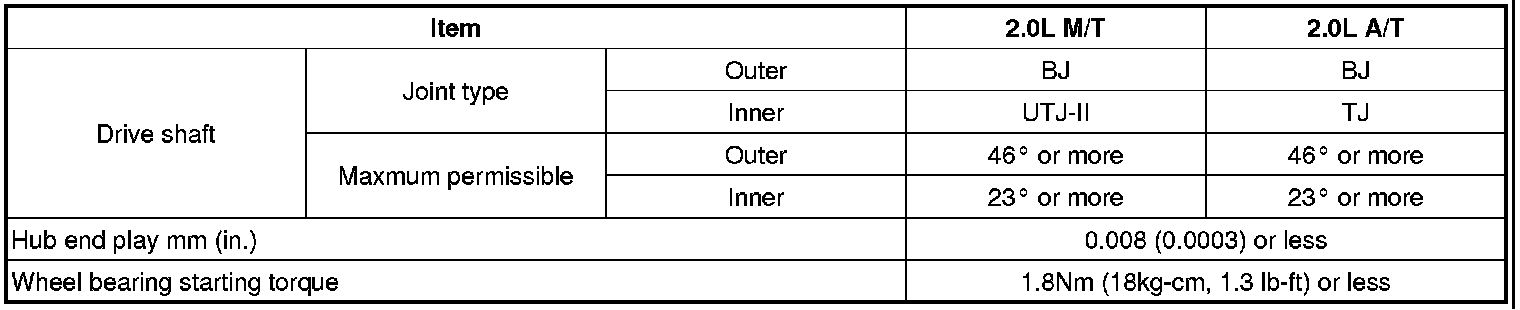

SPECIFICATIONS

BJ : Birfield Joint
TJ : Tripod Joint
UTJ-II : U TYPE-II Tripod Joint
M/T : Manual Transaxle
A/T : Automatic Transaxle

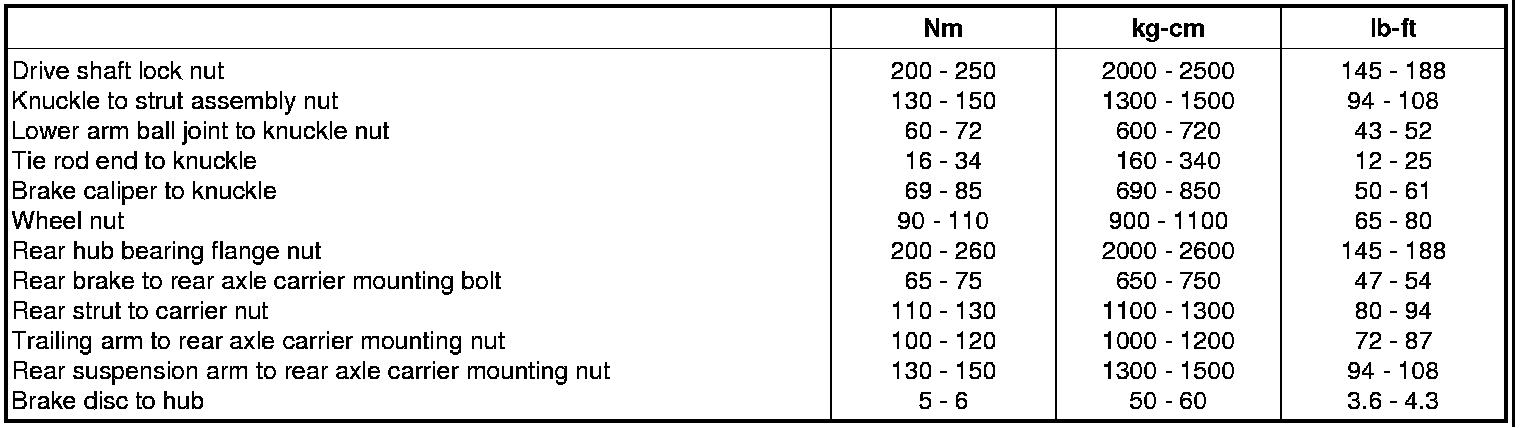

TIGHTENING TORQUE

CAUTION:
Replace self-locking nuts with new ones after removal.
