Wheel Stud / Lug Nut

TIGHTENING WHEEL NUT

1. Tightening torque.
Steel and aluminum alloy wheel.

Specified torque
90 - 110 Nm (900 - 1,100 kgf-cm, 65 - 80 lbf-ft)


CAUTION:
When using an impact gun, final tightening torque should be checked using a torque wrench.

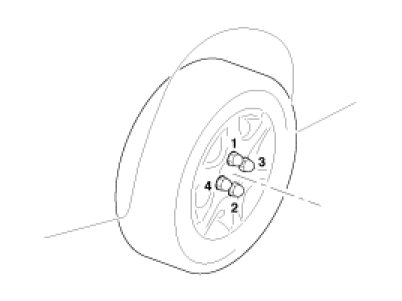

2. Tightening order.
Check the torque again after tightening the wheel nuts diagonally.
