Relay Box: Application and ID

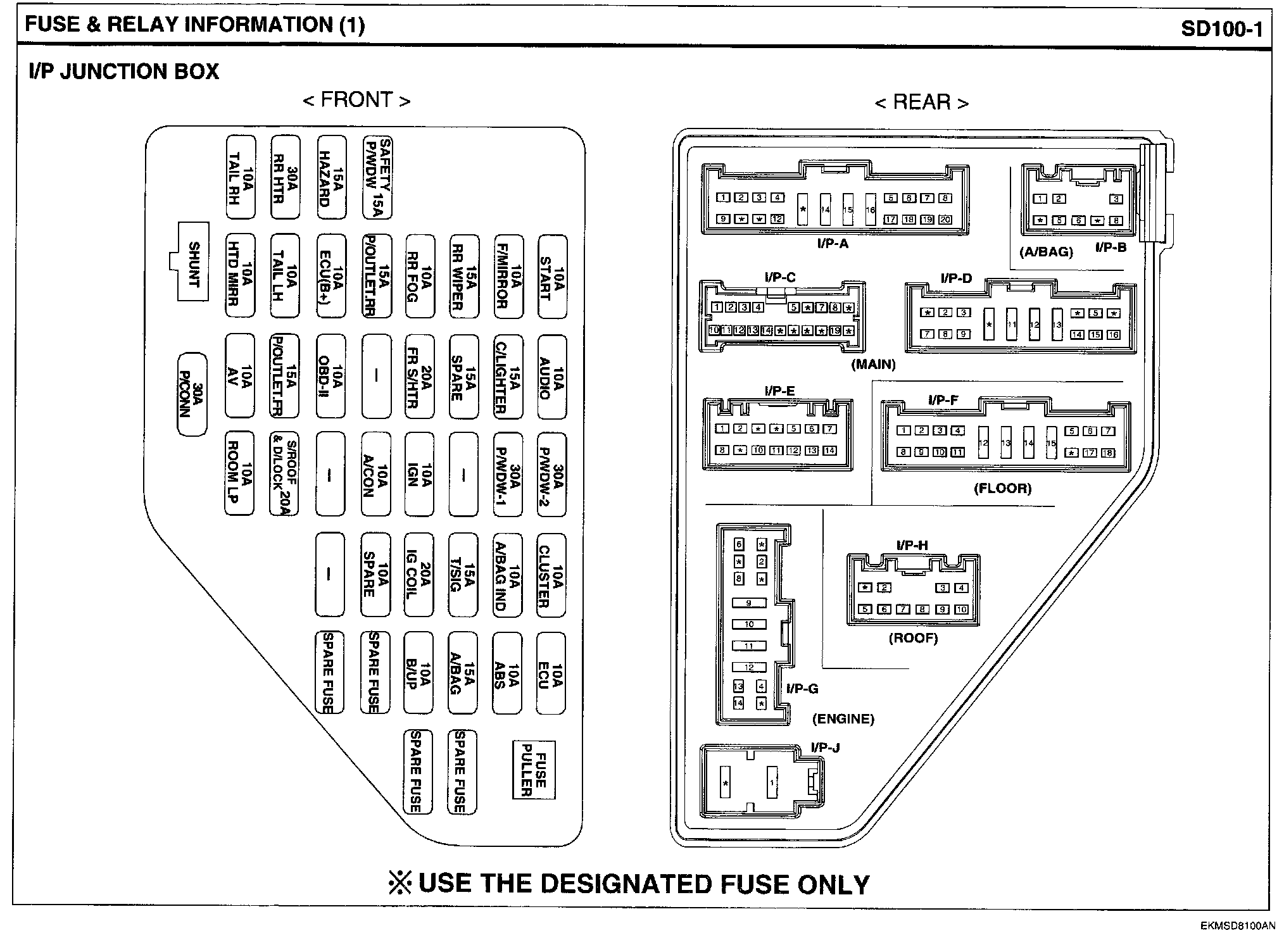

I/P Junction Box View:

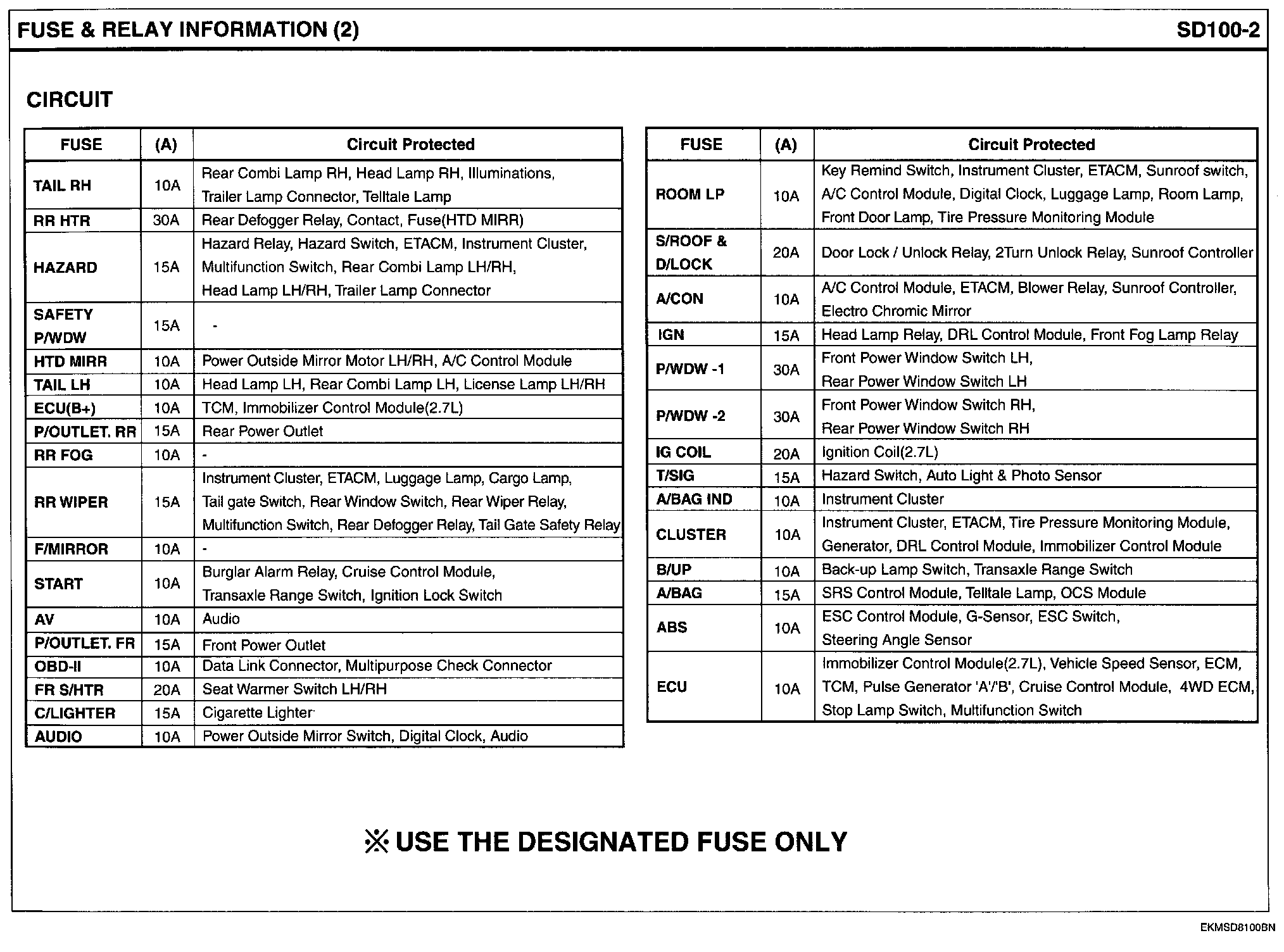

I/P Junction Box Circuit Details:

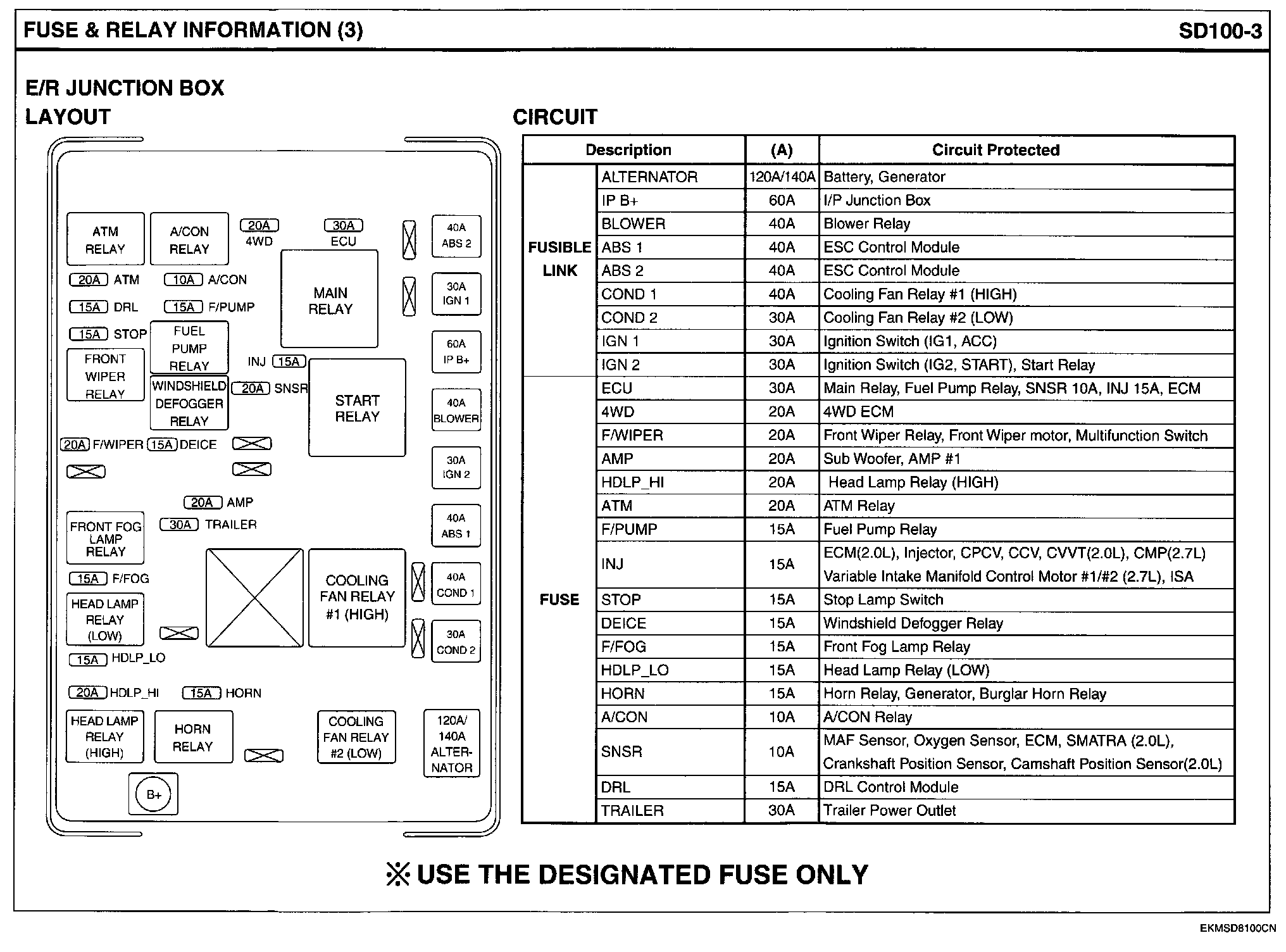

E/R Junction Box View:

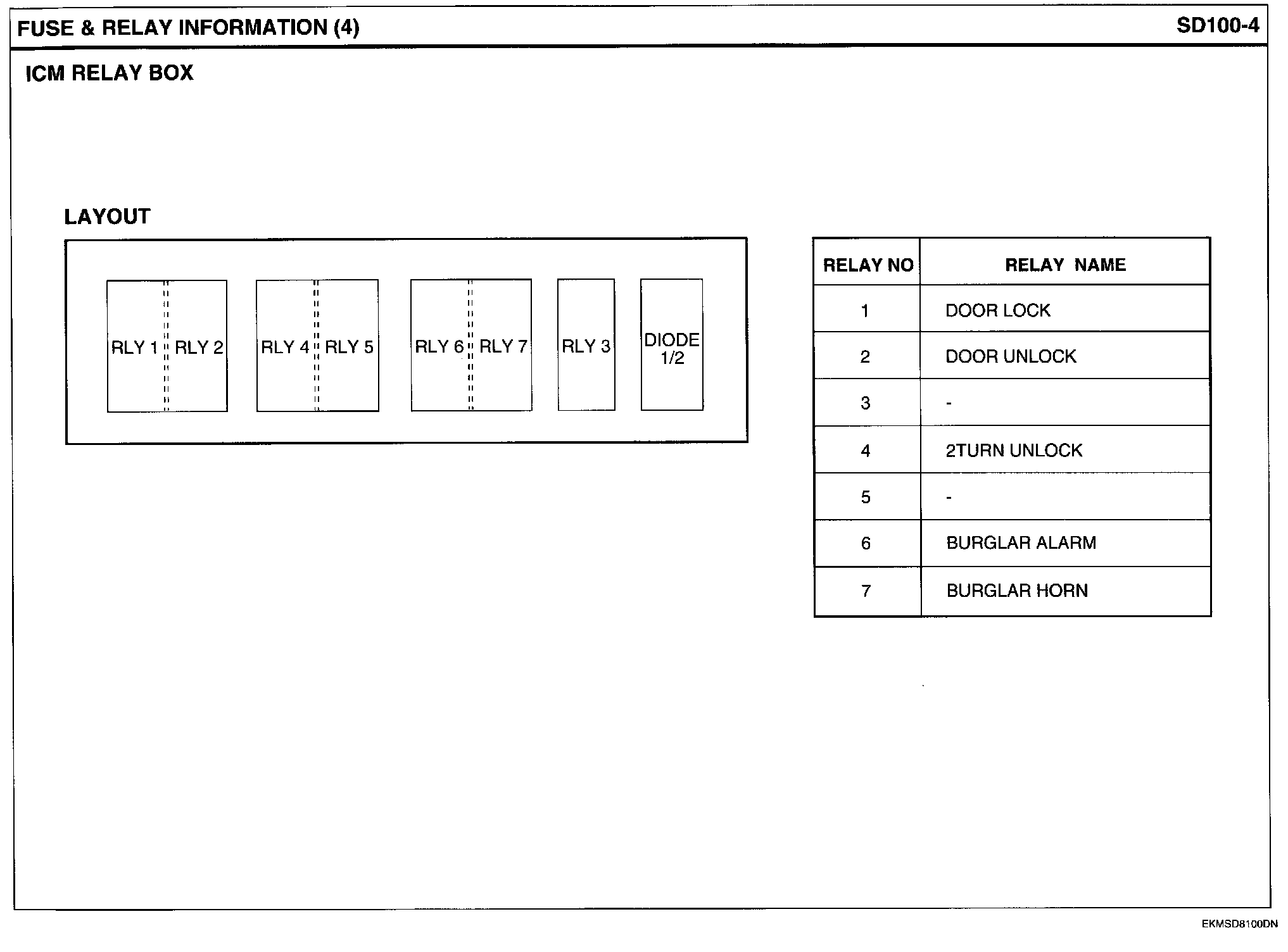

ICM Relay Box Circuit Details:
