Memory Positioning Systems
>>
Memory Positioning Switch
Memory Positioning Switch

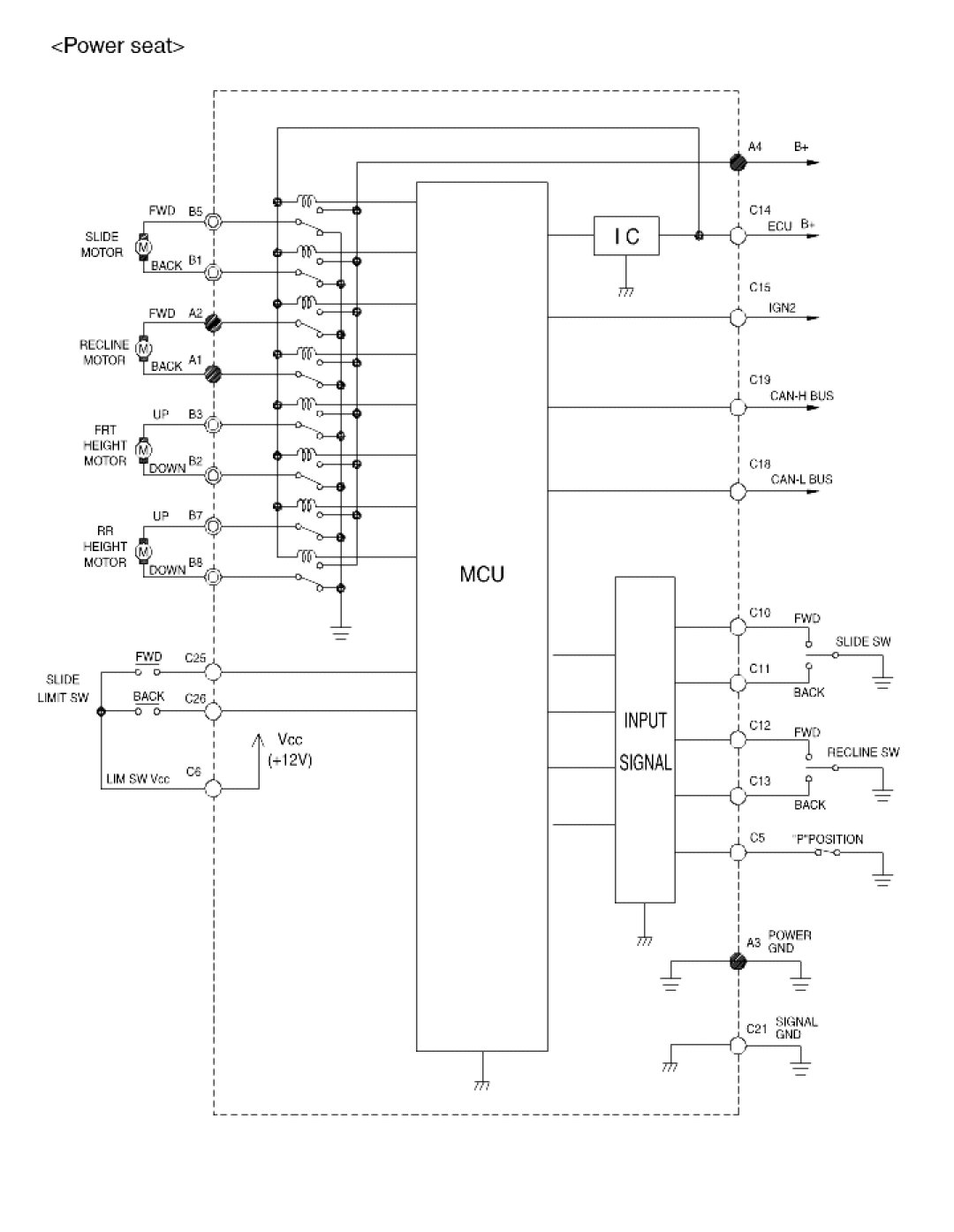

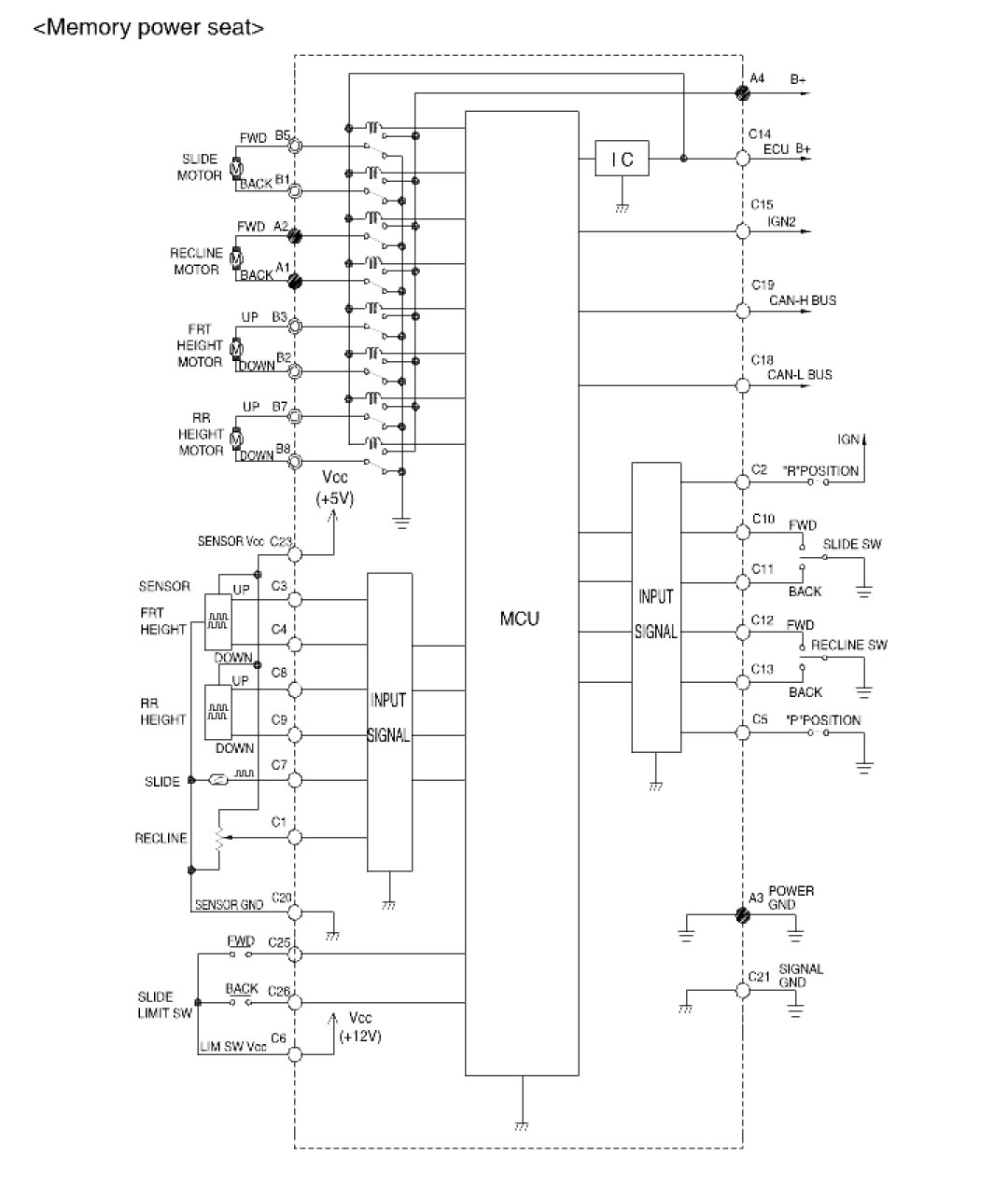

Circuit diagram

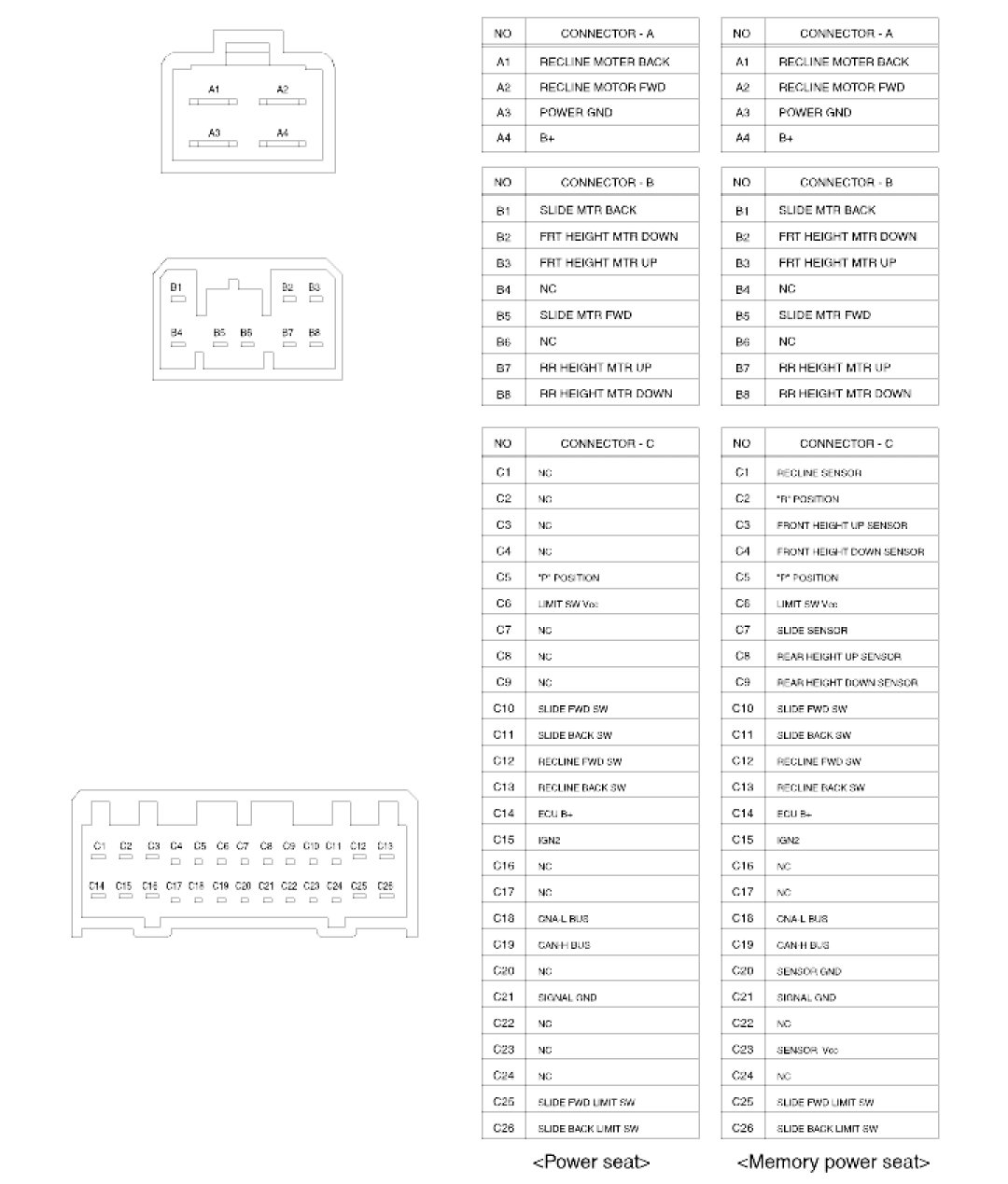

MCU Connector configuration
