Tire Monitoring System
Tire Monitoring System
Schematic Diagram

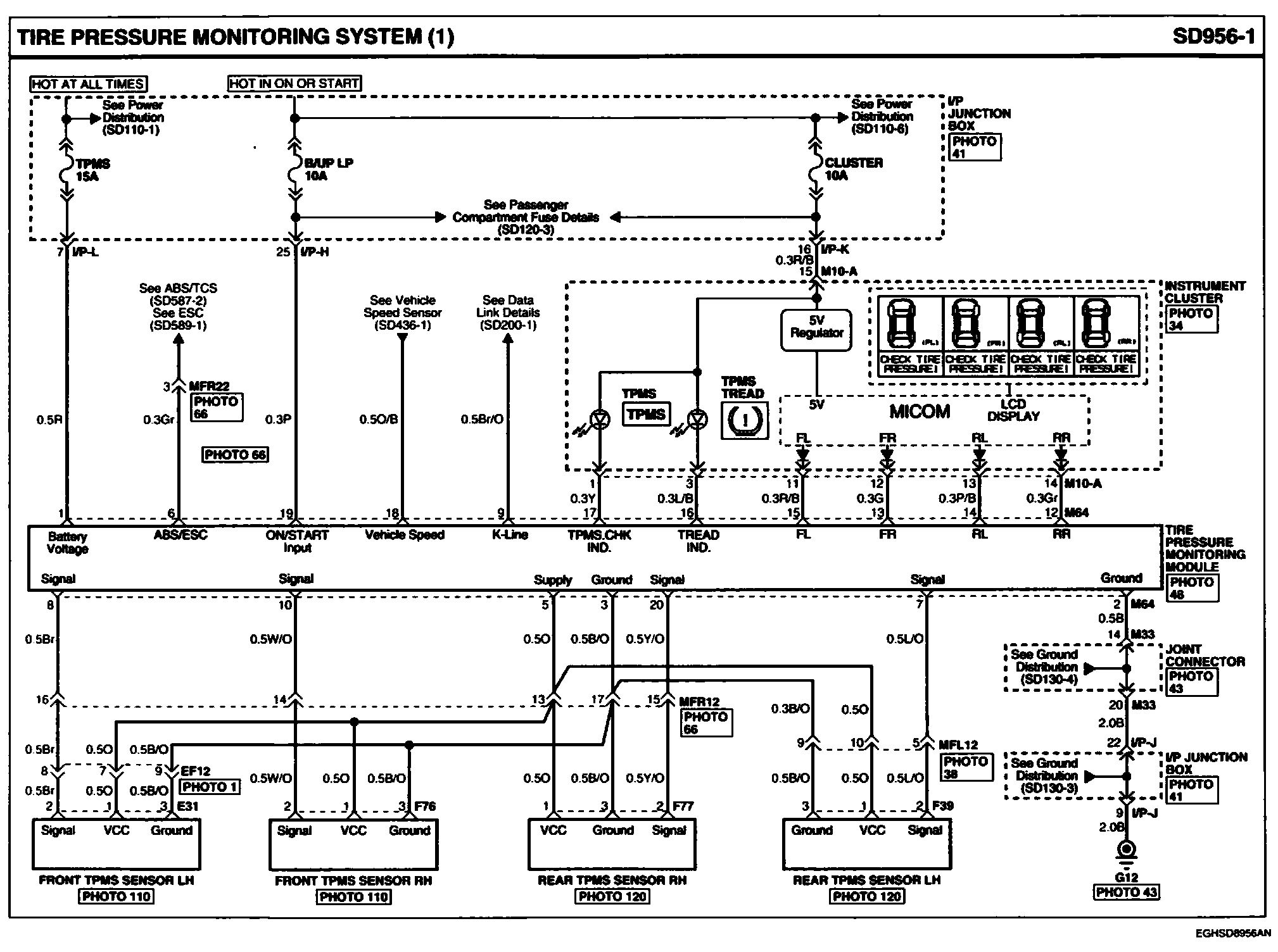

Tire Pressure Monitoring System (1):

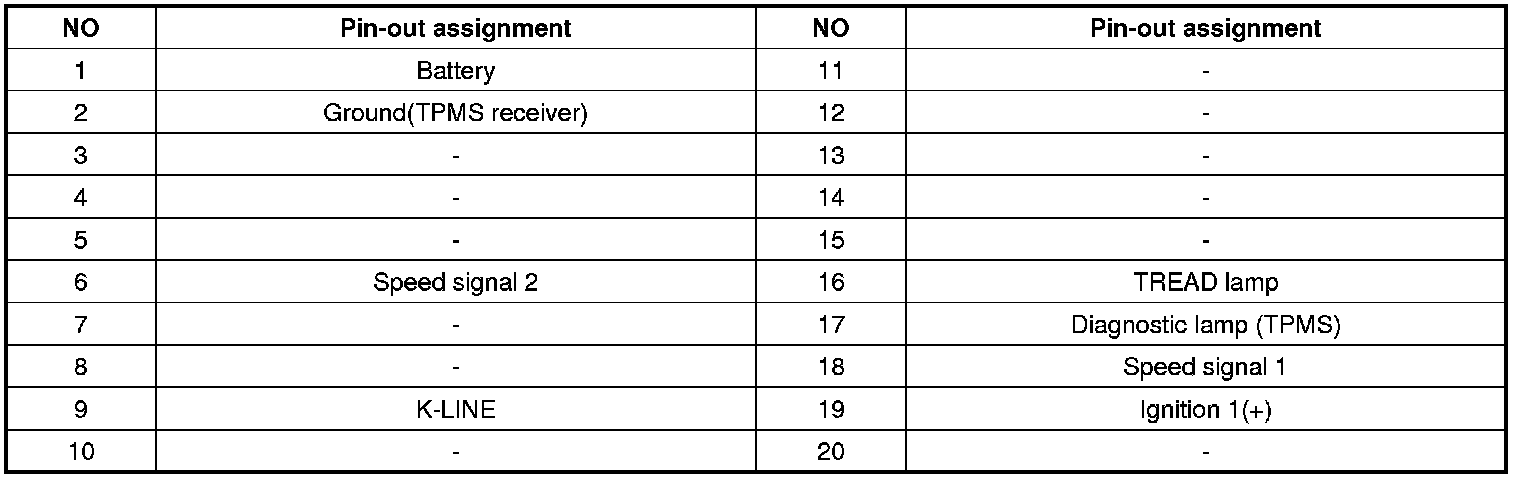

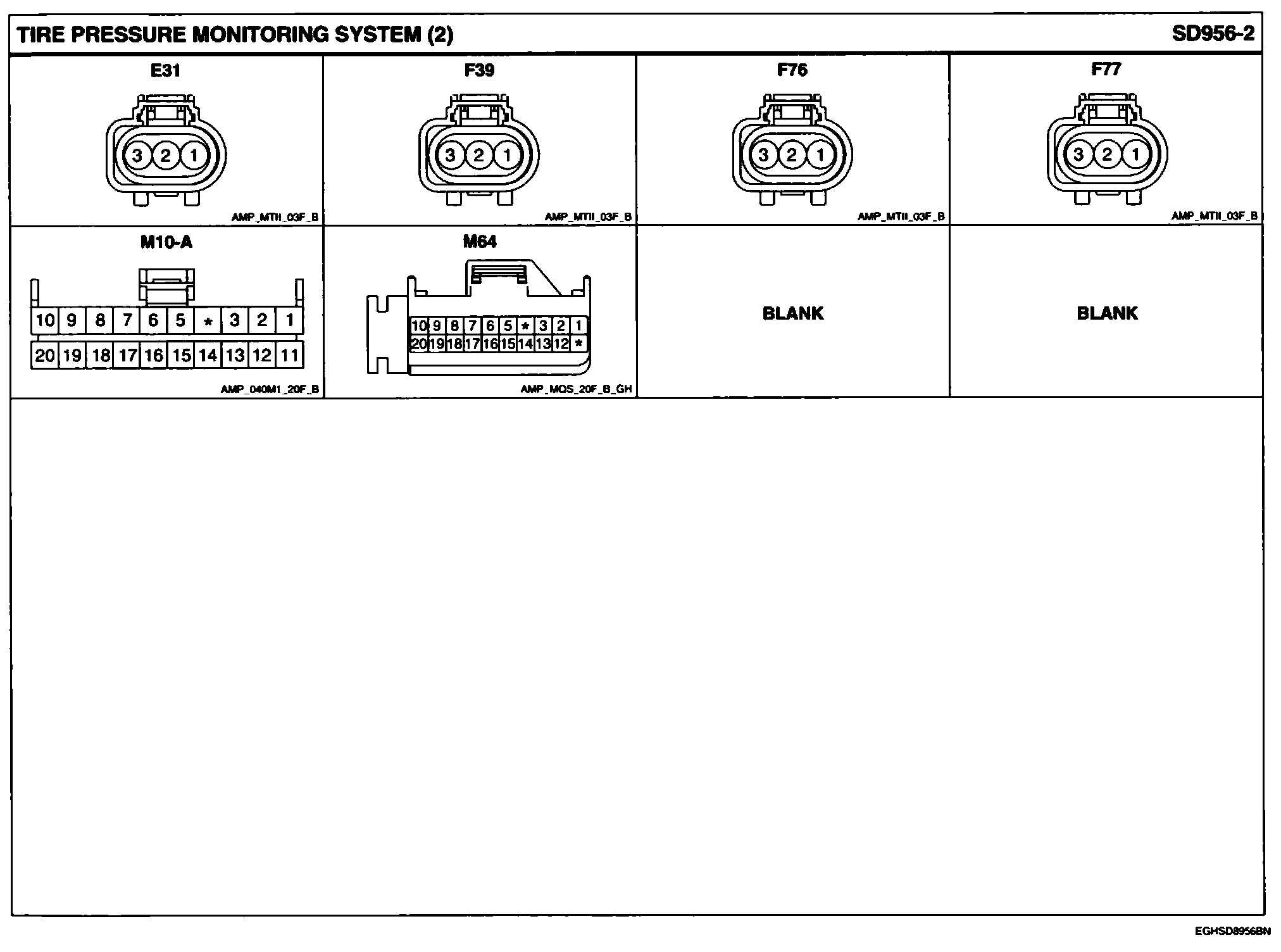

Tire Pressure Monitoring System Connector Pin Outs:

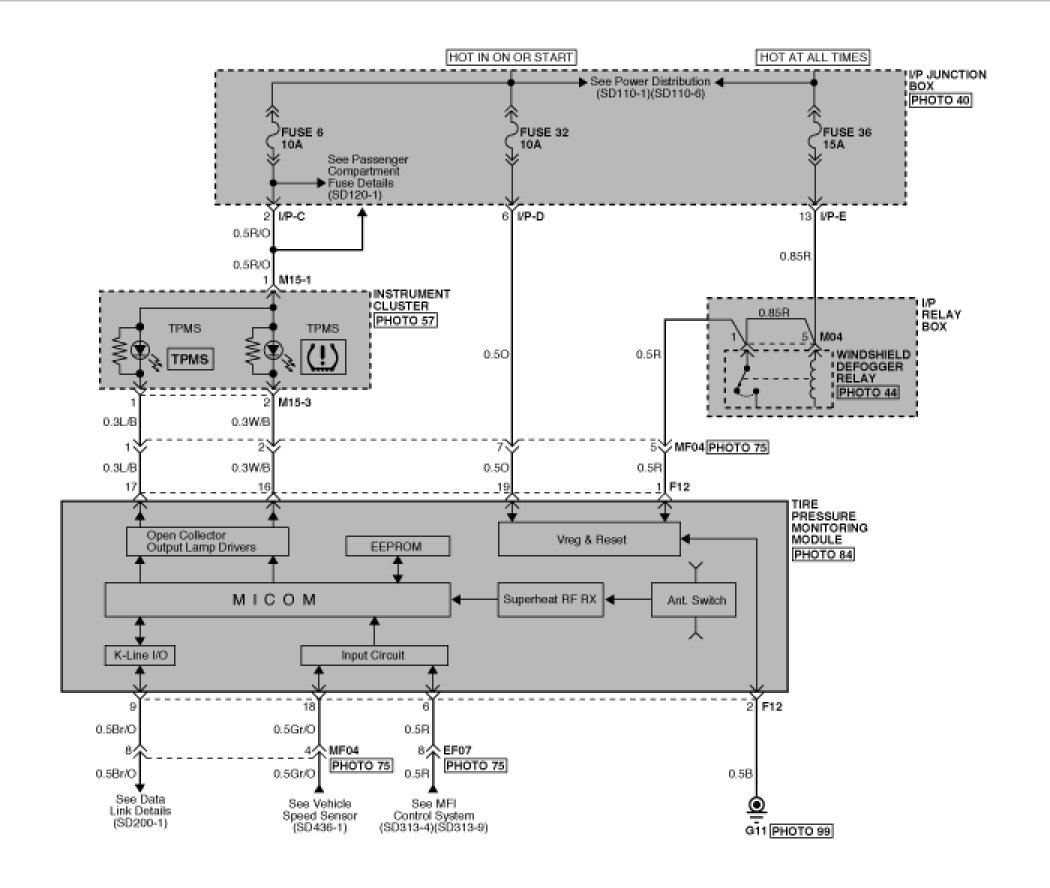

Circuit Diagram
