Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2009
>>
Amanti V6-3.8L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Brakes and Traction Control
>>
Electronic Brake Control Module
Electronic Brake Control Module

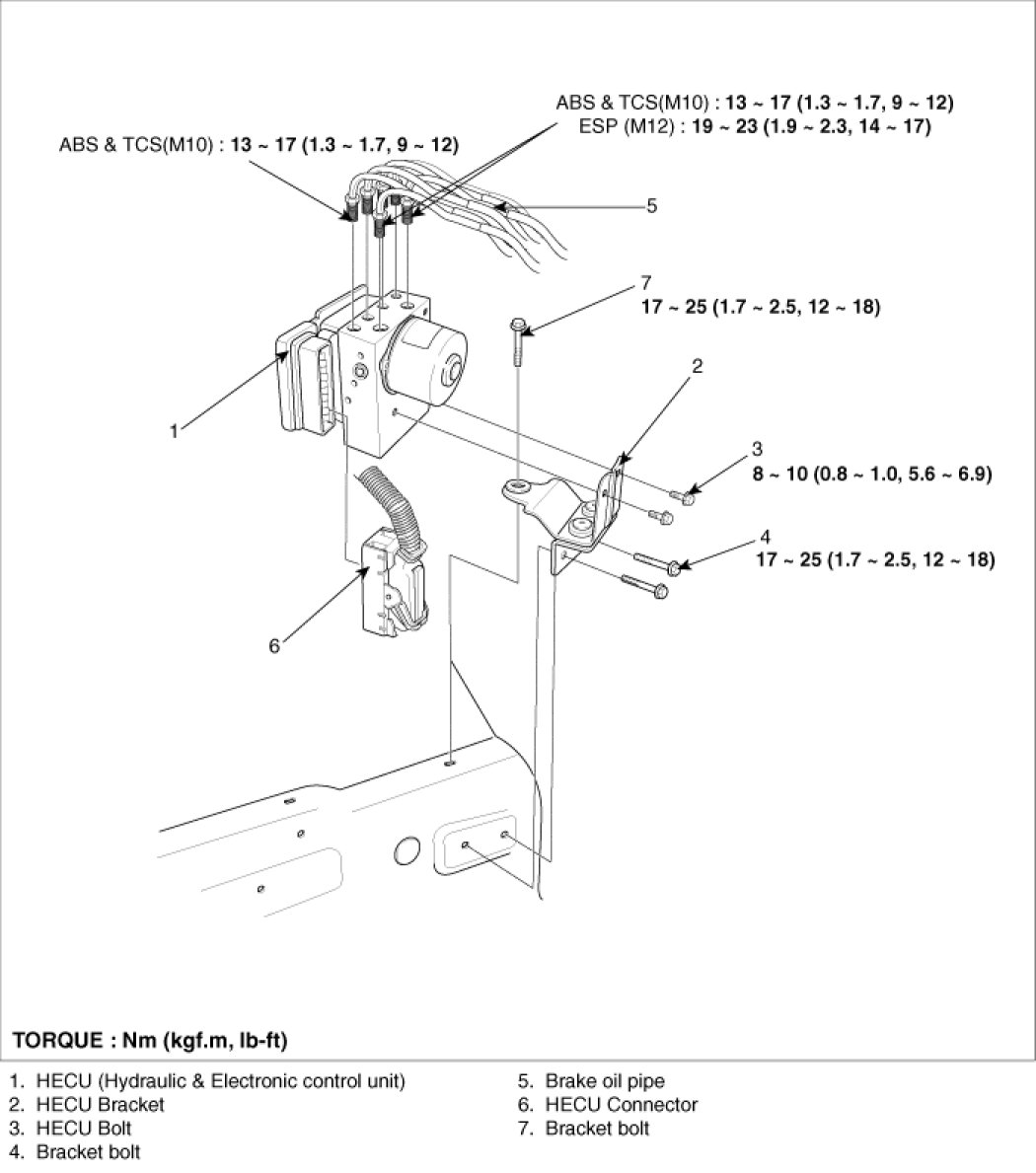

HECU (HYDRAULIC AND ELECTRONIC CONTROL UNIT)
COMPONENTS
