System Specifications






SPECIFICATION

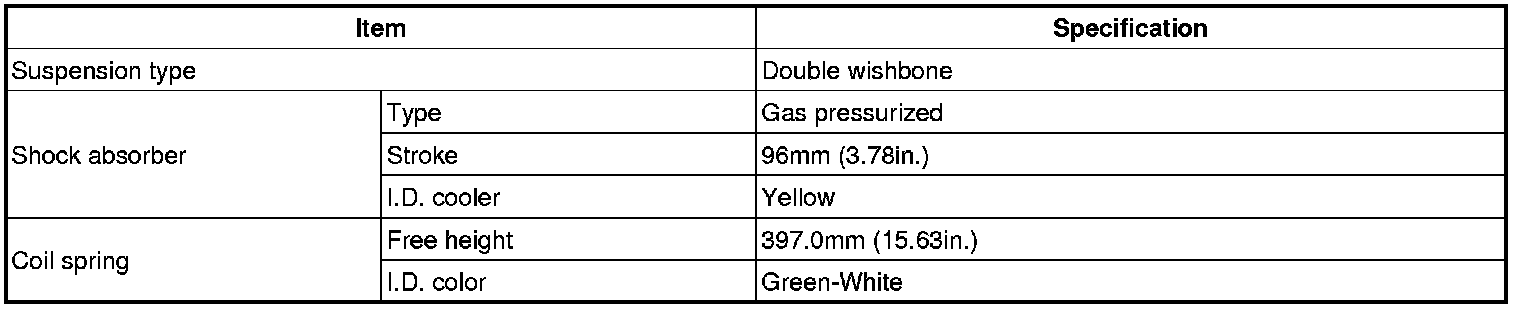

FRONT SUSPENSION

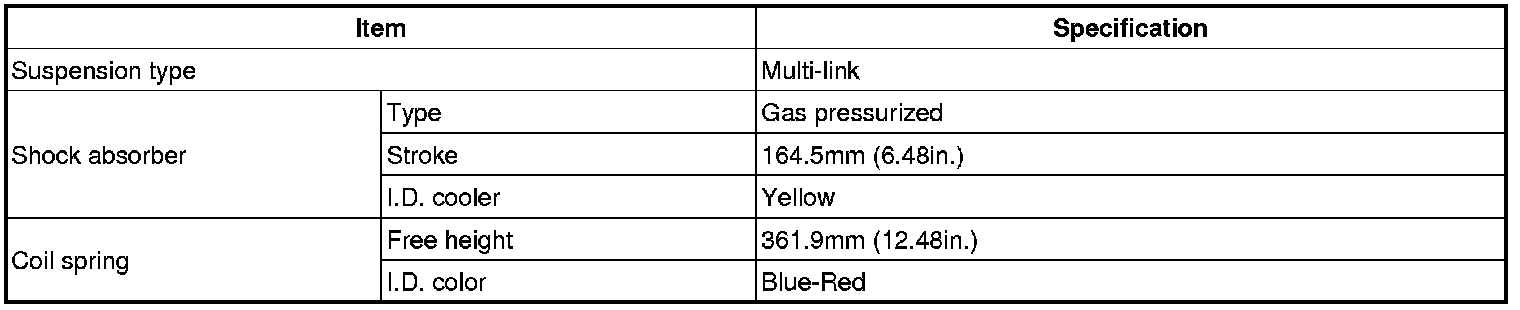

REAR SUSPENSION

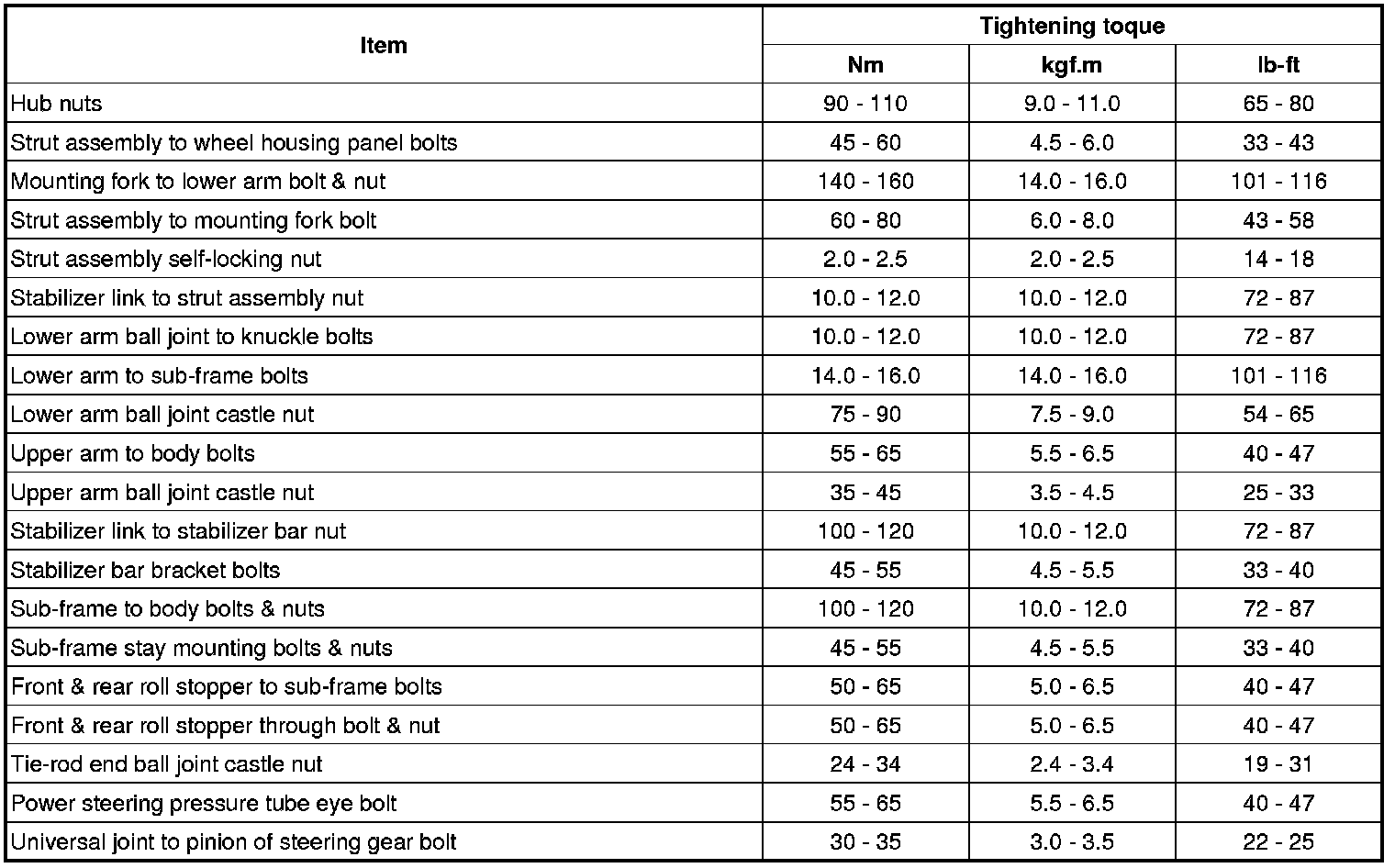

FRONT SUSPENSION

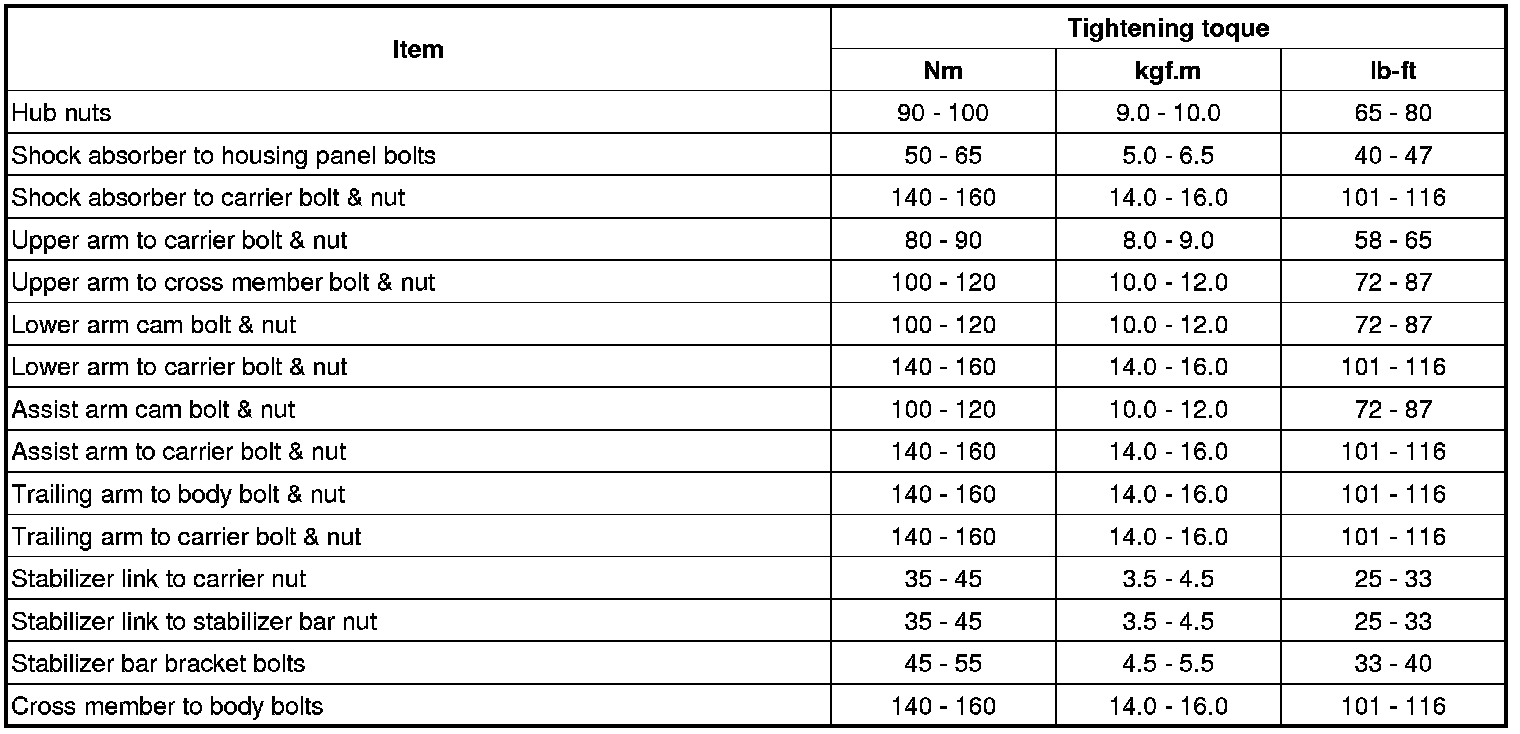

REAR SUSPENSION
