Crash Pad

Cluster Fascia Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Using a hole (B), remove the crash pad side cover (A).




2. After loosening the mounting screws, remove the lower panel (A).

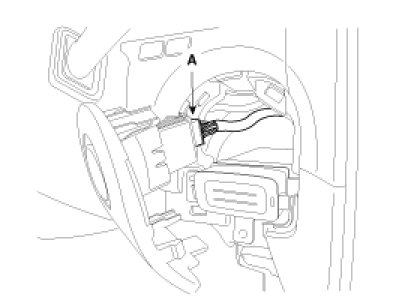

3. Disconnect the connector (A) and (B).




4. After loosening the mounting screws, remove the switch assembly (A).




5. Disconnect the connectors (A).




6. Remove the cover (A).




7. Disconnect the connector (A).




8. Tilt the steering column down.

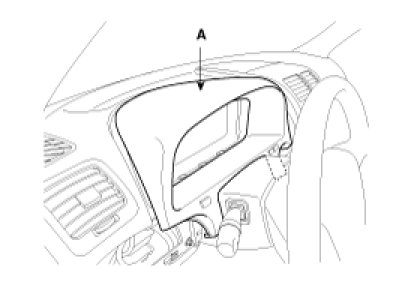

9. Remove the cluster fascia panel (A).




10. Disconnect the trip sensor connector (A),




11. After loosening the mounting screws, remove the cluster fascia (A).

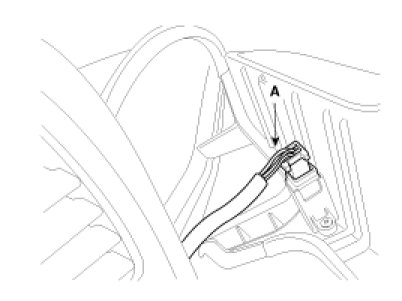

12. Disconnect the connectors (A).




13. Installation is the reverse the removal.

NOTE:
- Make sure the connector are connected in properly.
