Home >> Kia >> 2009 >> Borrego 4WD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Wheel Hub >> Front Hub

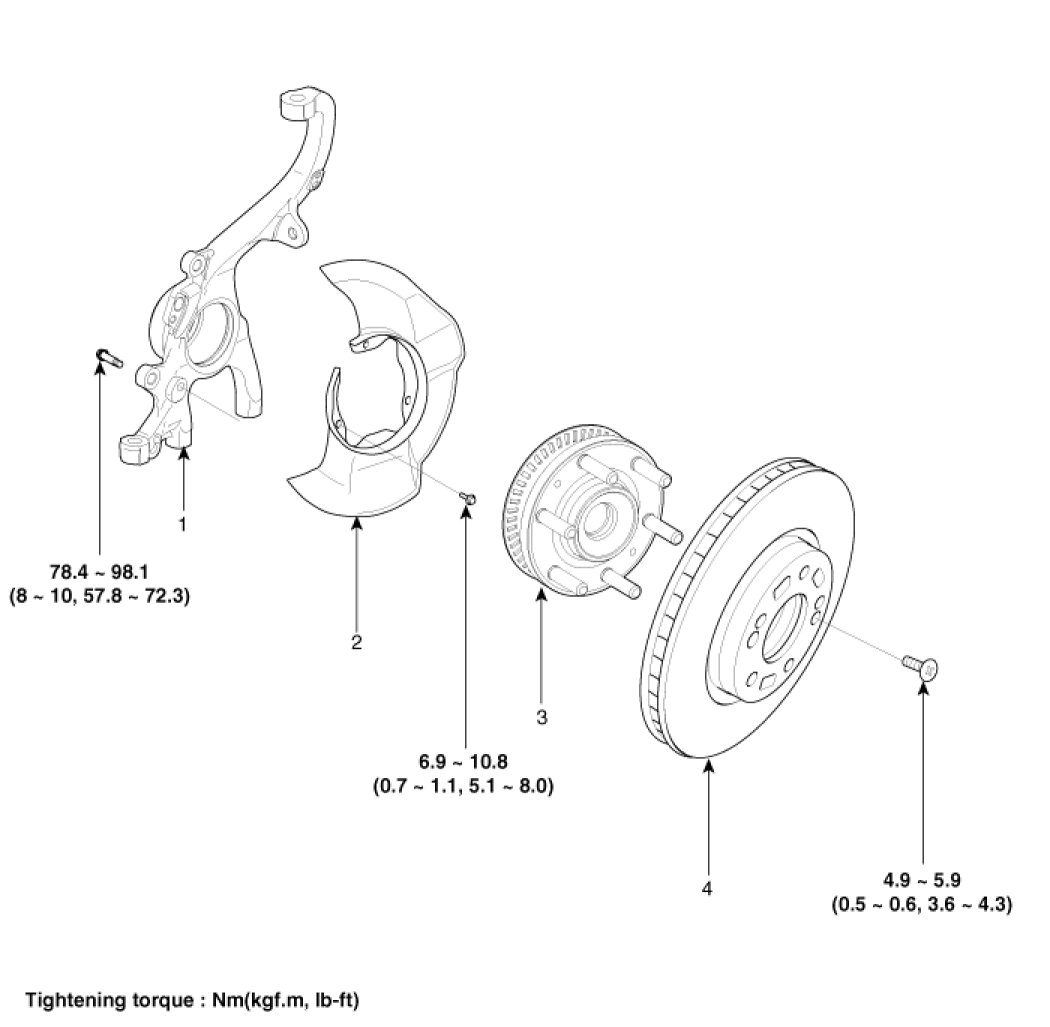

Front Hub





Components
