Crash Pad

Heater Control Unit Replacement

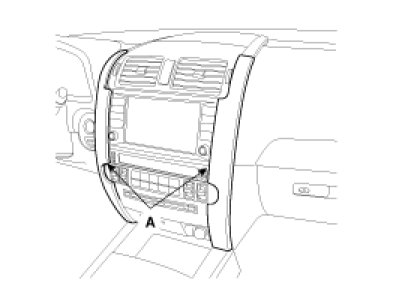

1. Using a hole (B), remove the center fascia garnish (A).

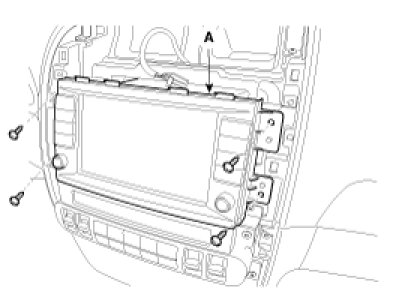

2. Remove the center air vent (A).

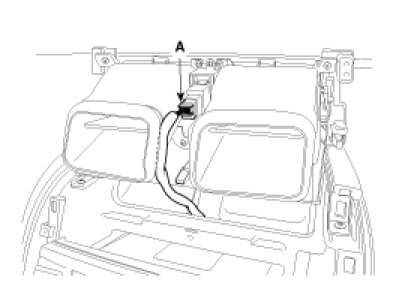

3. Disconnect the connector (A).




4. After loosening the audio assembly mounting screws, then remove the audio assembly (A).

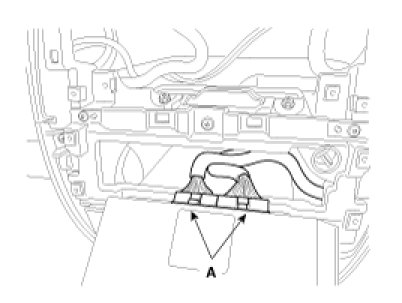

5. Disconnect the connectors (A).




6. After loosening the heater control mounting screws, remove the heater control unit (A).

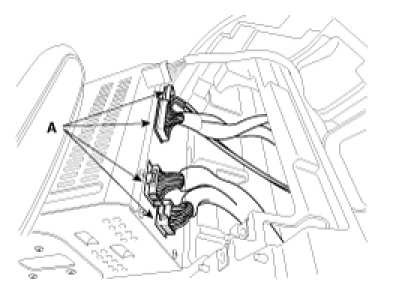

7. Disconnect the connectors (A).




8. Installation is the reverse of removal.

NOTE:
- Make sure the connector are connected in properly.
