Ignition Coil: Service and Repair

Replacement

Ignition coil
1. Remove the engine cover (A).

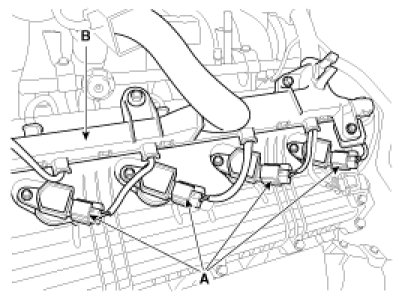

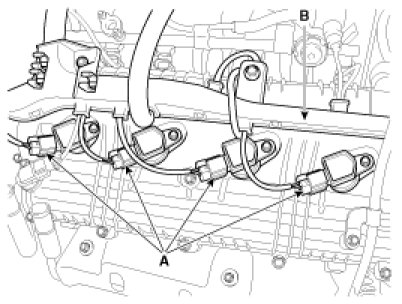

2. Disconnect the ignition coil connectors (A).

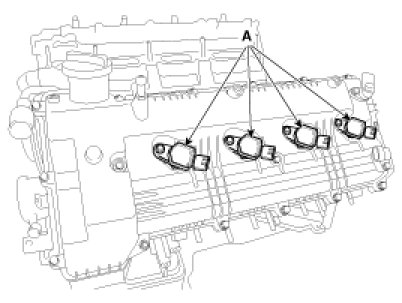

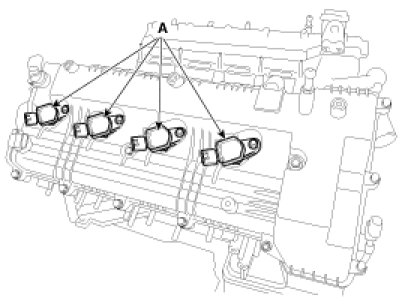

3. Remove the ignition coils (A).








4. Installation is reverse order of removal.
