Procedures

Service Adjustment Procedure

Fluid replacement
1. Clean the fluid level plug and the surface near.

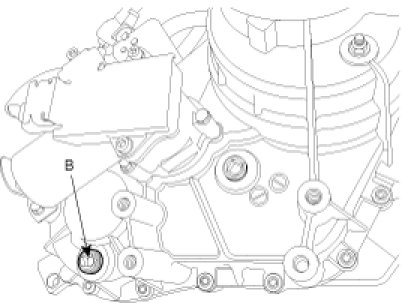

2. Drain the fluid by removing the drain plug (B).

NOTE:
When the oil is warm, check or drain the oil.
Remove the fluid level plug to help drain the fluid.




3. Install the drain plug.

Tightening torque:
20 - 30 Nm(2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)


4. Add fluid until the fluid flows out of the fluid level hole.
5. When the fluid dribbles out of the fluid level hole, install the fluid level plug.

Tightening torque:
20 - 30 Nm(2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
