Front Disc Brake










SEIZE OF FRONT BRAKE DISC

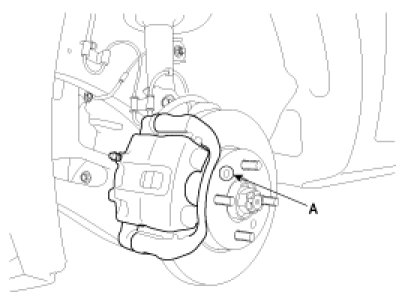

1. Remove the brake disc from hub using M8 screw(A) if the brake disc has been seized with the hub due to corrosion or overheat.

NOTE:
Be careful not to use the hammer. The disc can be damaged if you remove the disc from the hub by hammer.
