Parking Brake System: Testing and Inspection
Inspection 1.

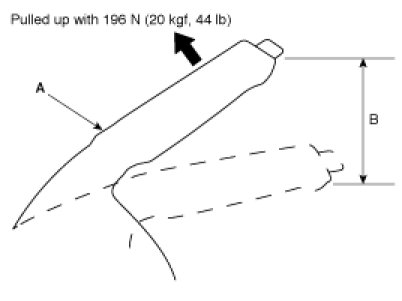

Pull the
parking brake lever (A) with 196 N (20 kg, 44lbf) force to fully apply the parking brake. The parking brake lever should be locked within the specified number of clicks (B).
Lever locked clicks: 6 - 8 clicks
2.
Adjust the parking brake if the lever clicks are out of specification.
