Kia
>>
2009
>>
Rio L4-1.6L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Clutch, M/T
>>
Clutch Pedal Assembly
Clutch Pedal Assembly

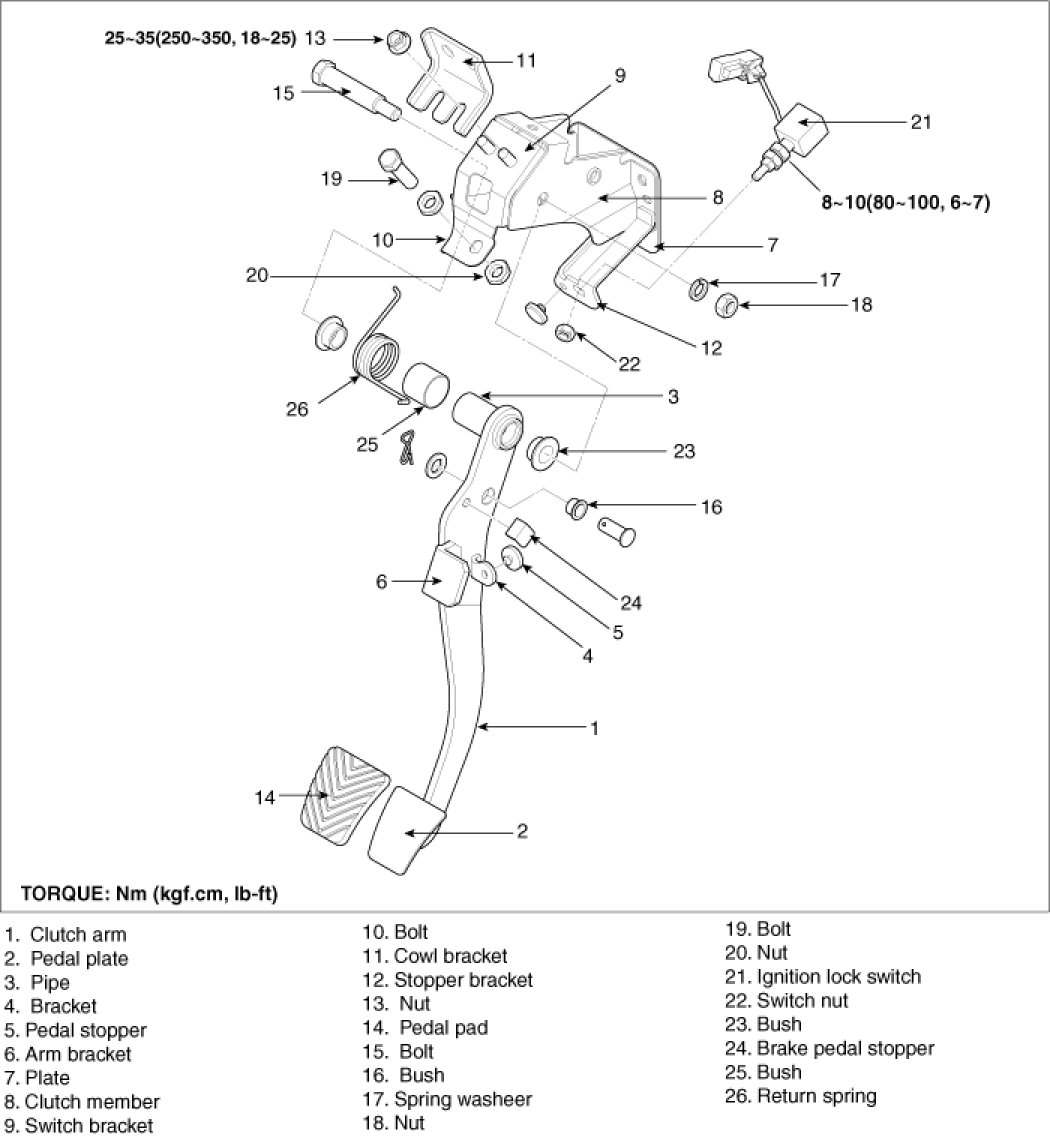

COMPONENTS (1)
