Brake System

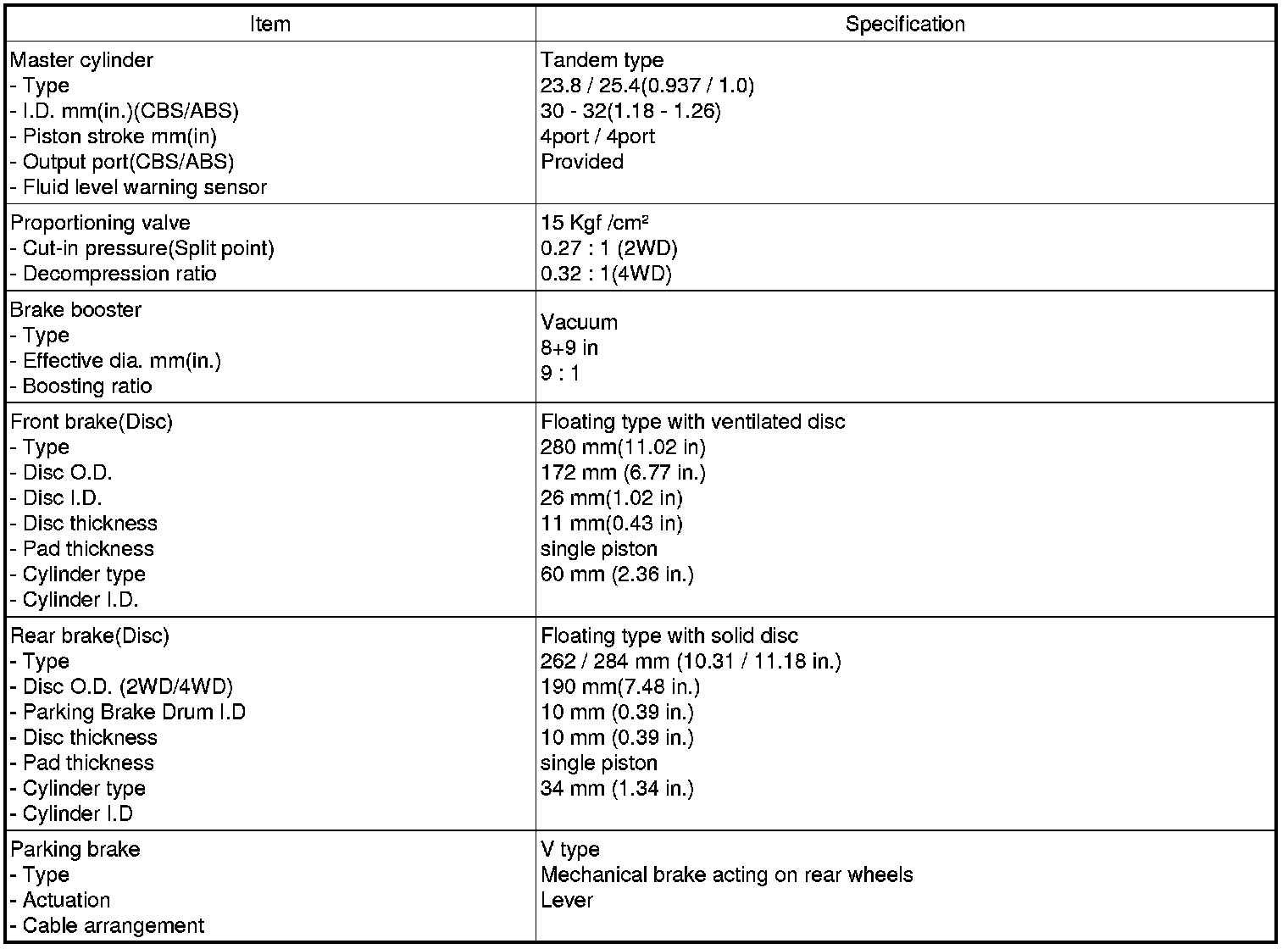

SPECIFICATIONS





O.D=Outer Diameter
I.D=Inner Diameter

NOTE:
CBS : Conventional Brake System

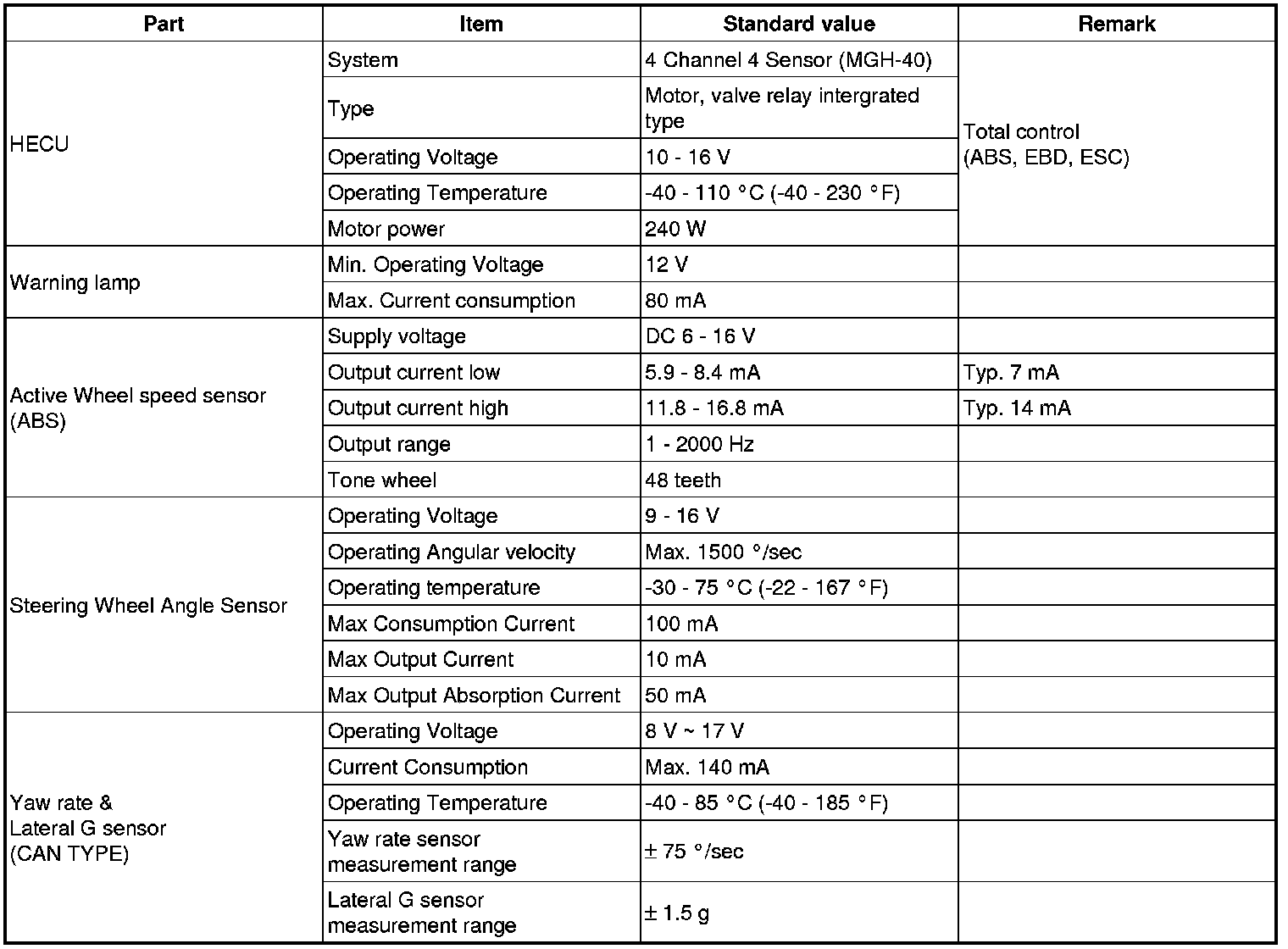

SPECIFICATION (ESC)

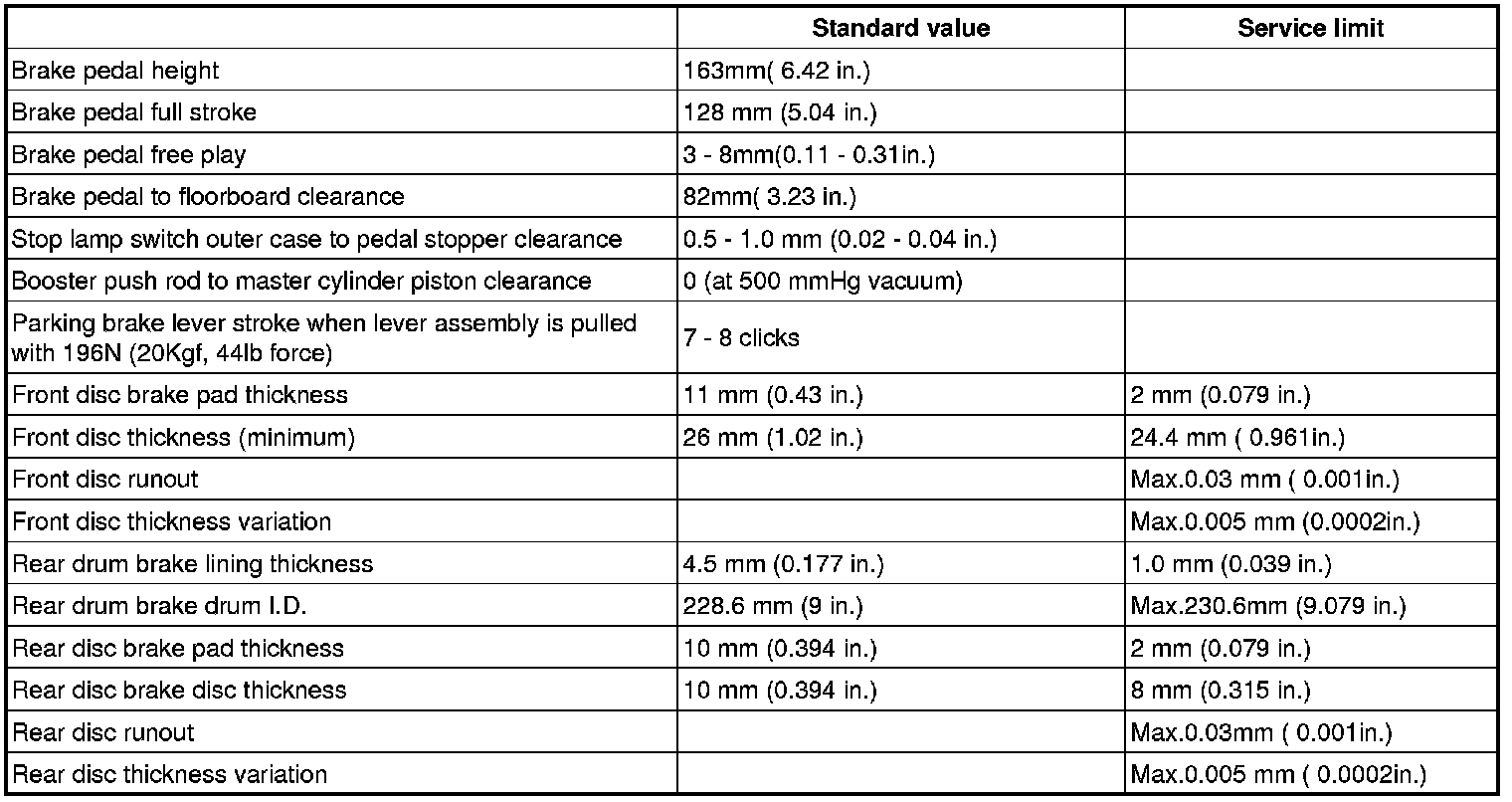

SERVICE STANDARD

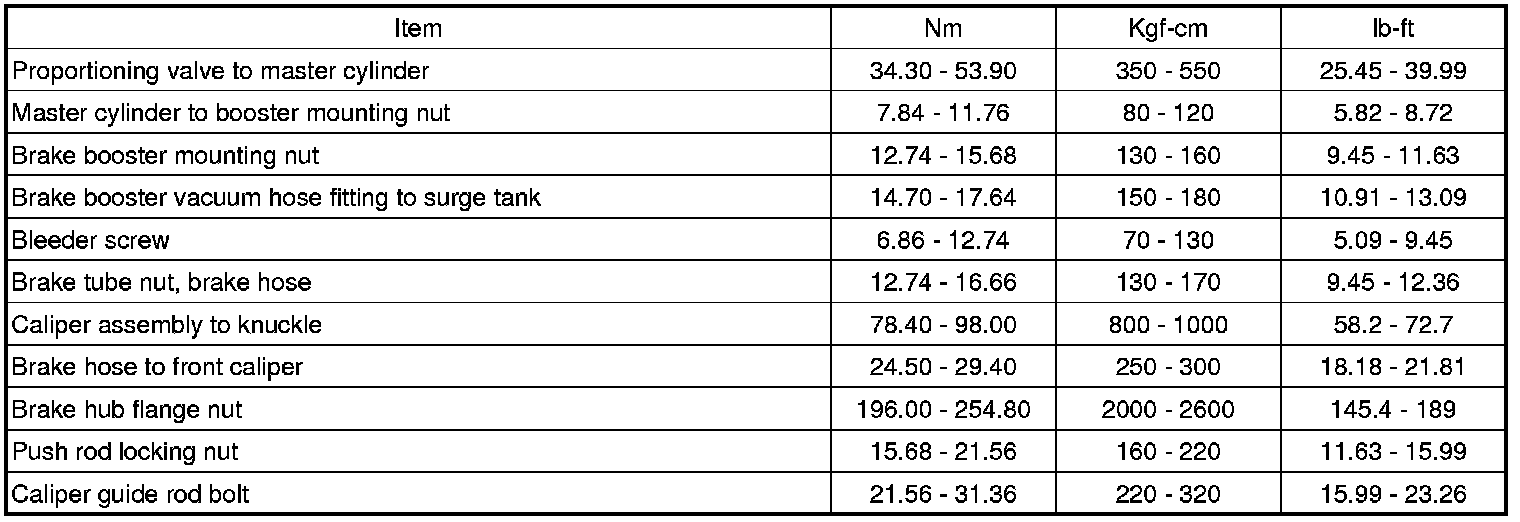

TIGHTENING TORQUE

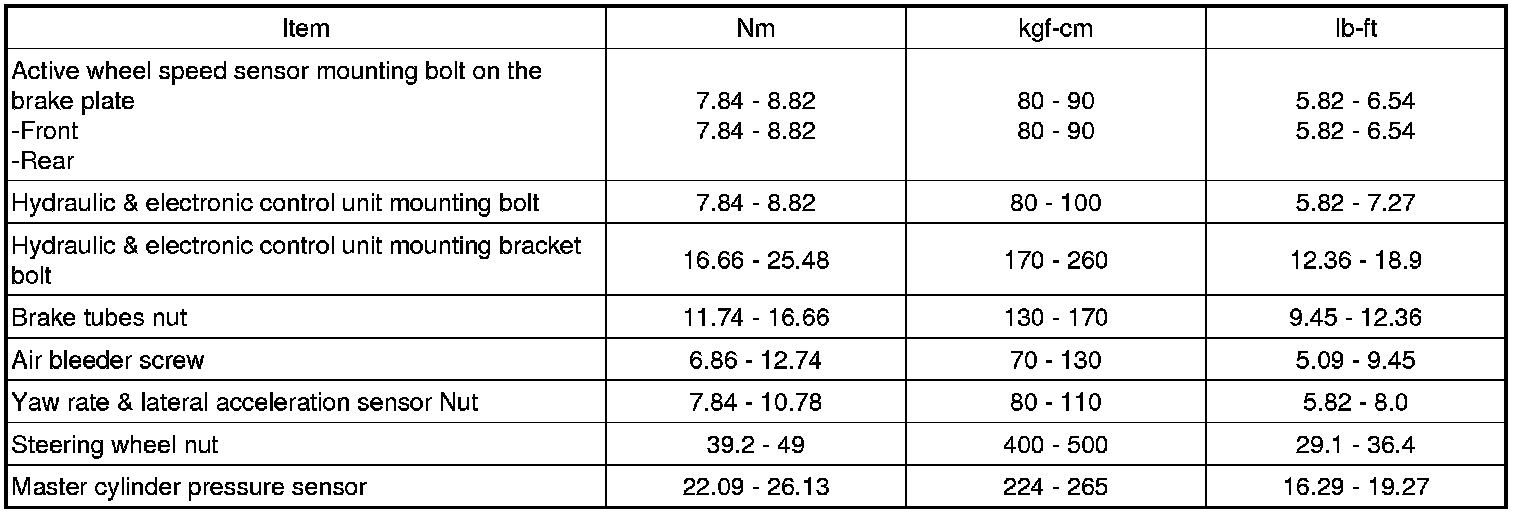

TIGHTENING TORQUE (ESC)
