Fuse: Locations
FUSE AND RELAY INFORMATION

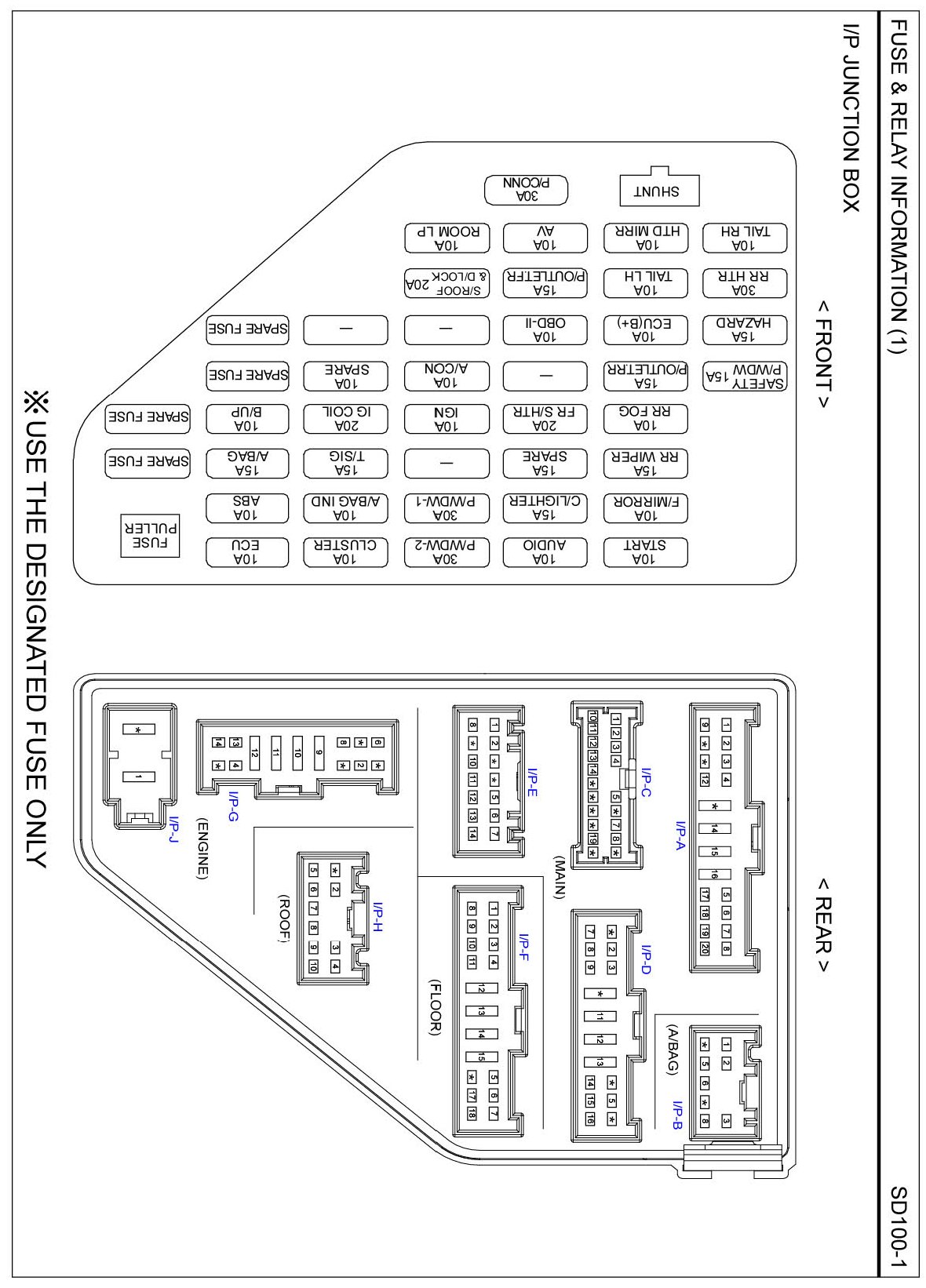

I/P Junction Box View:

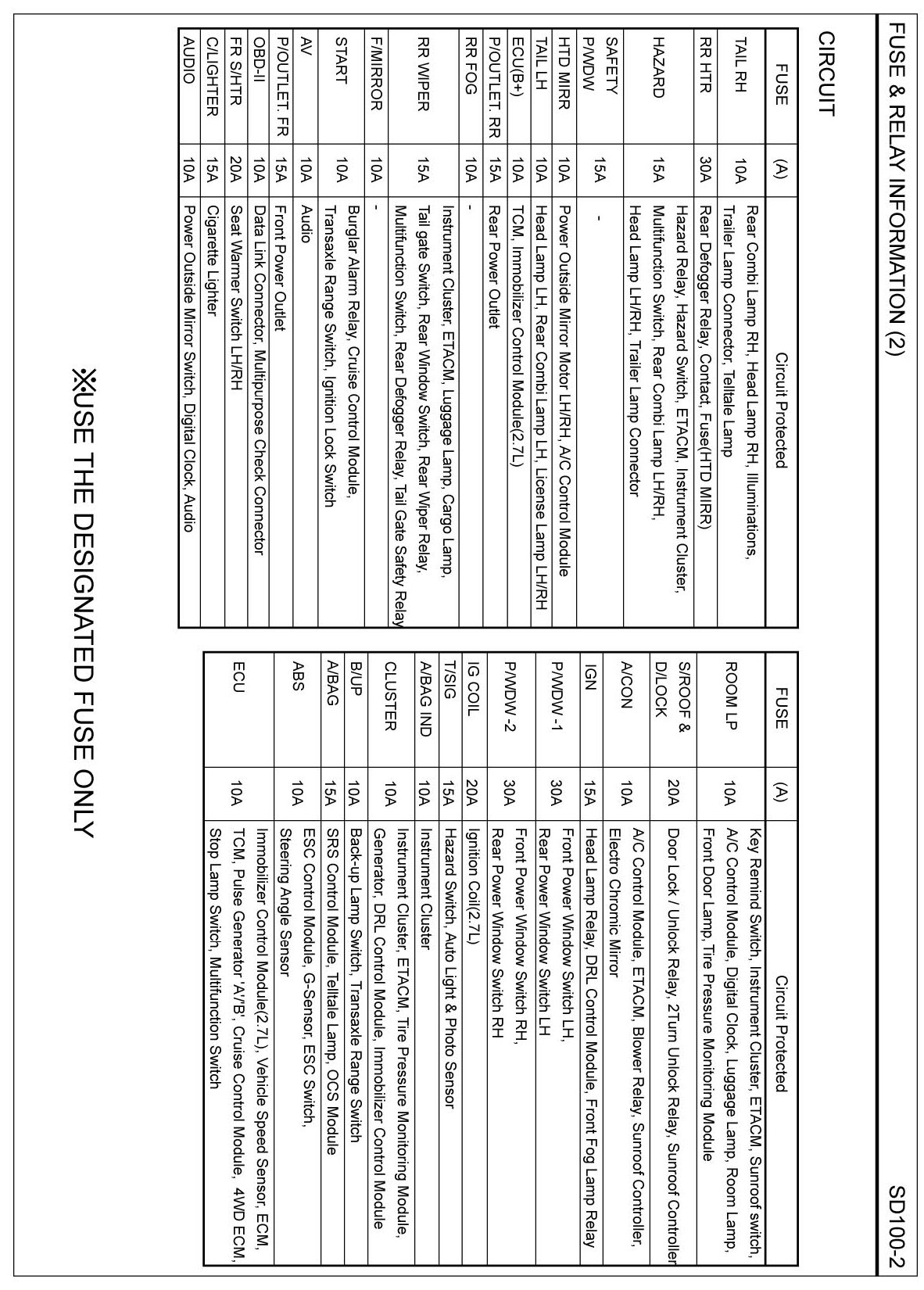

I/P Junction Box Circuit Details:

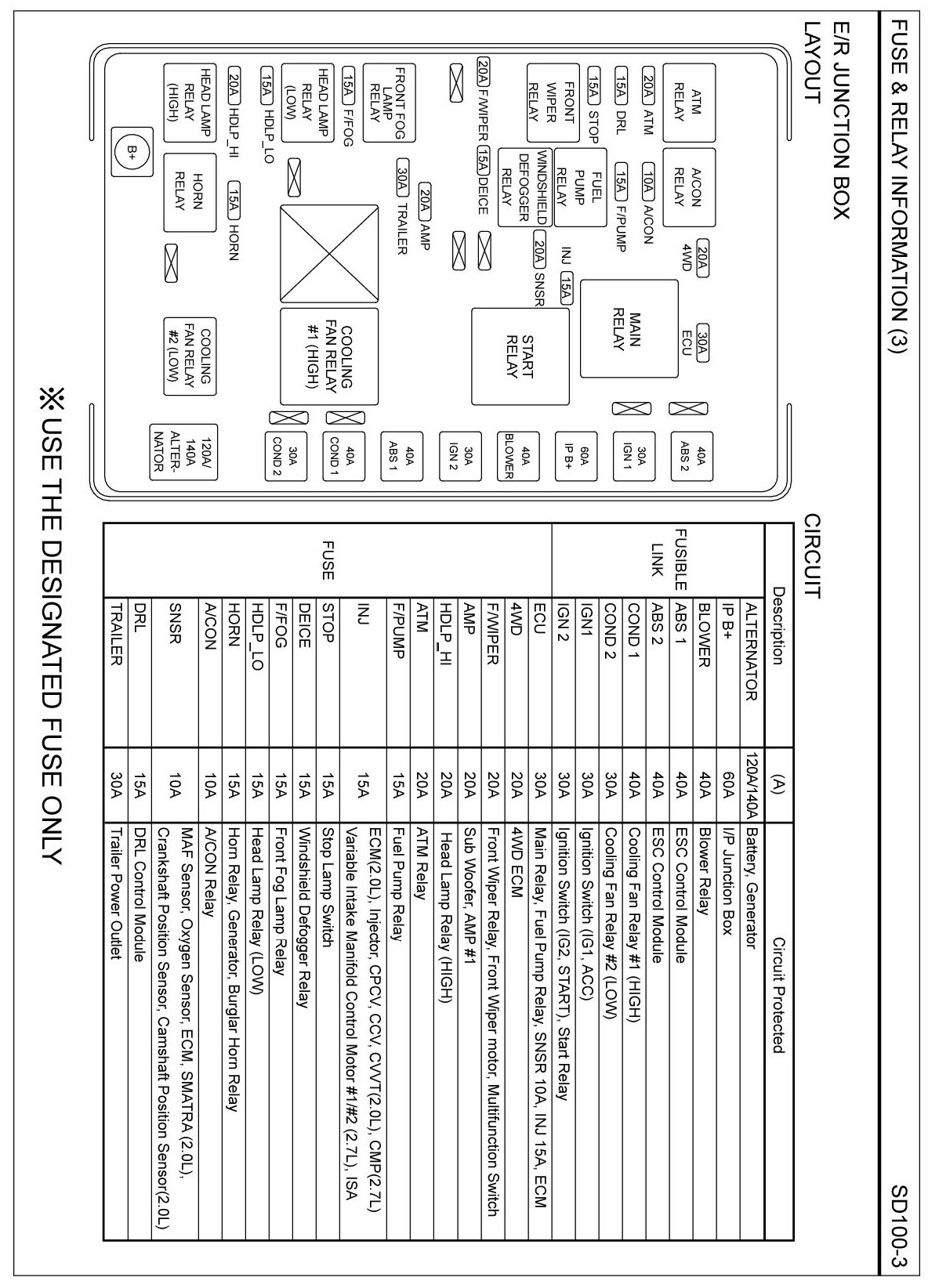

E/R Junction Box Layout:

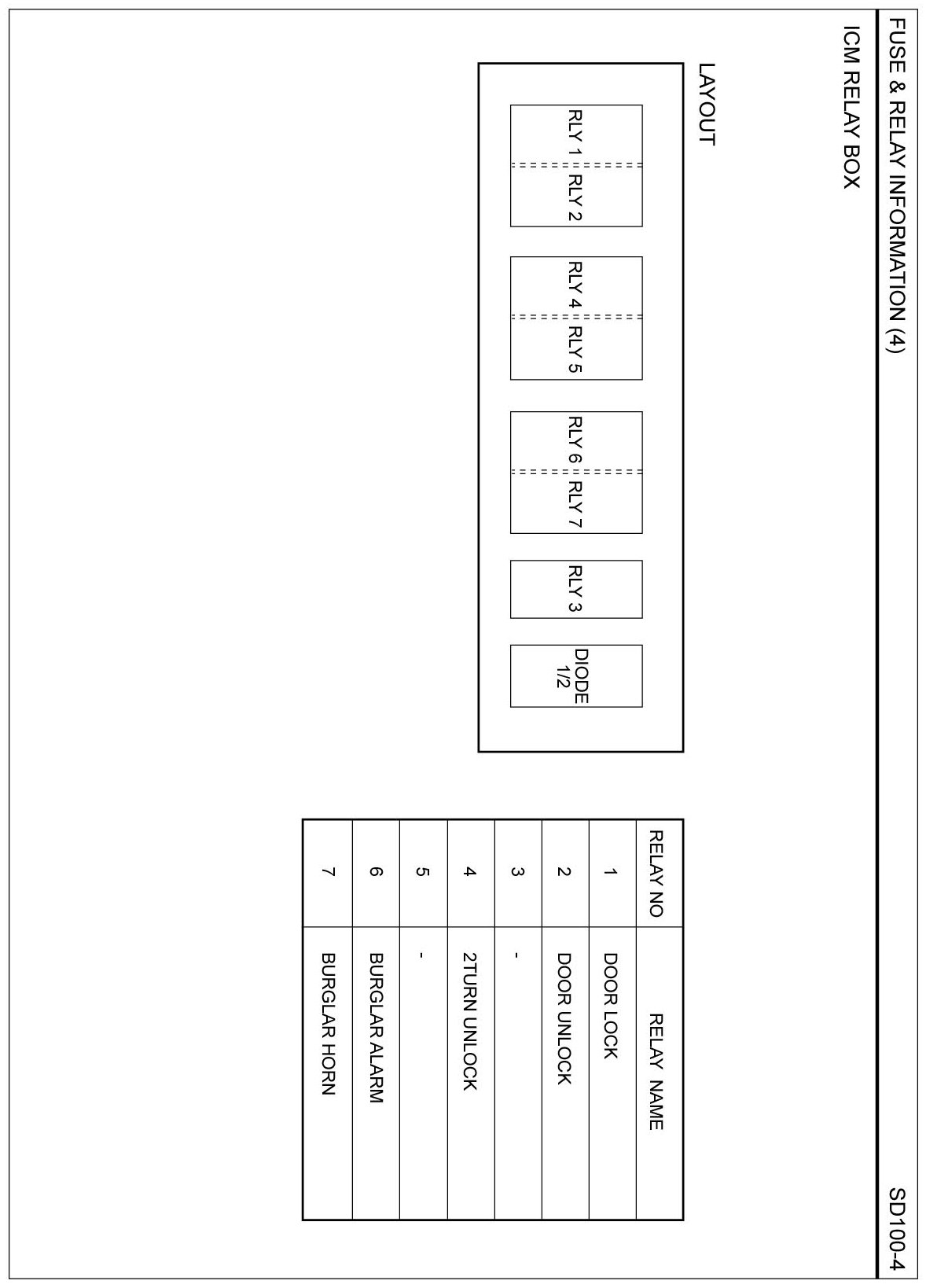

ICM Relay Box:
