Exhaust Manifold
Exhaust Manifold
Exhaust Manifold

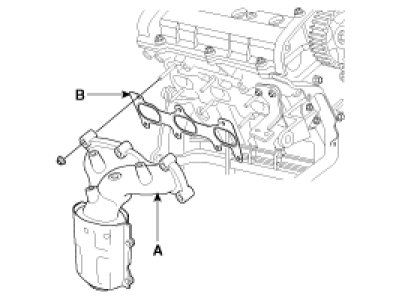

Install the
exhaust manifold
(A) and gasket(B).
Tightening torque
30 - 35N.m (300 - 350kgf.cm, 22 - 26lb-ft)
