Wheel Stud / Lug Nut

WHEEL NUT TIGHTENING

1. Tightening torque.

Tightening torque :
90 - 110 Nm (9 - 11 Kgf-m, 66.4 - 81.2 lb-ft)

CAUTION:
When using an impact gun, final tightening torque should be checked using a torque wrench.

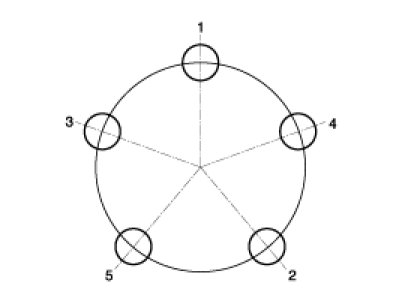

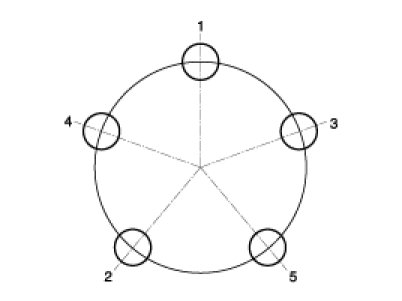

2. Tightening order.
Check the torque again after tightening the wheel nuts diagonally.
