Brakes and Traction Control: Specifications

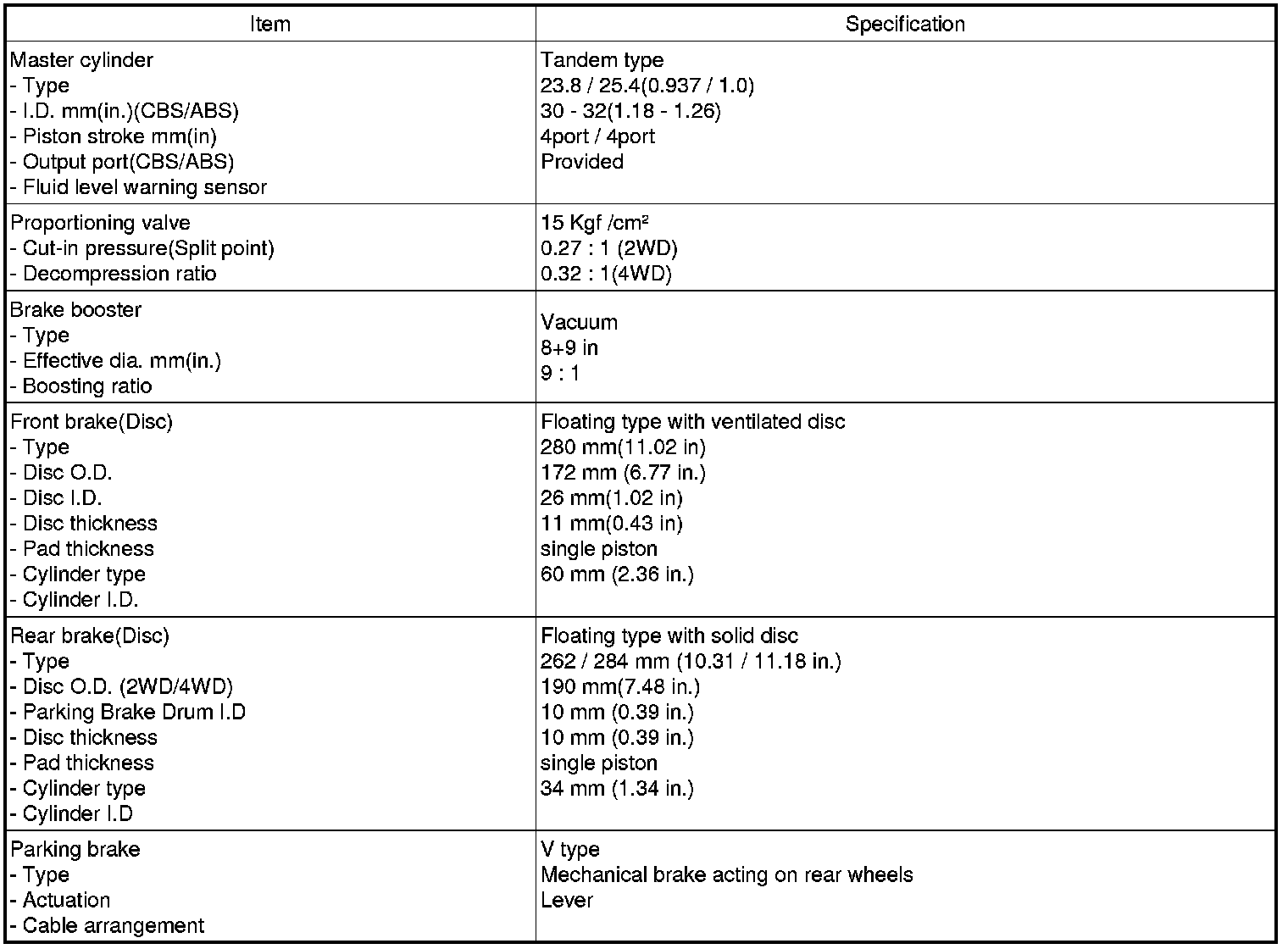

SPECIFICATIONS





O.D=Outer Diameter
I.D=Inner Diameter

NOTE:
CBS : Conventional Brake System

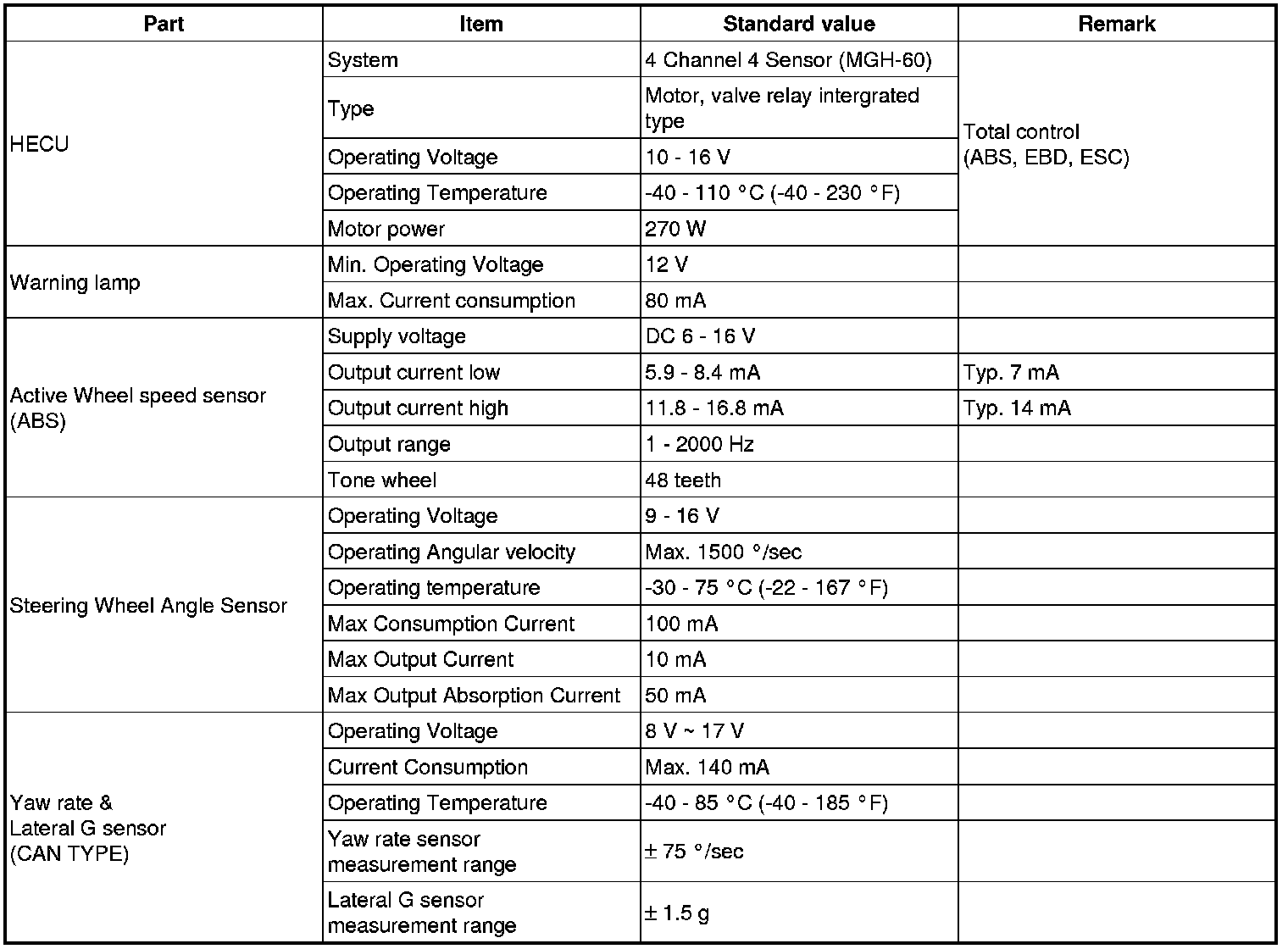

SPECIFICATION(ESC)

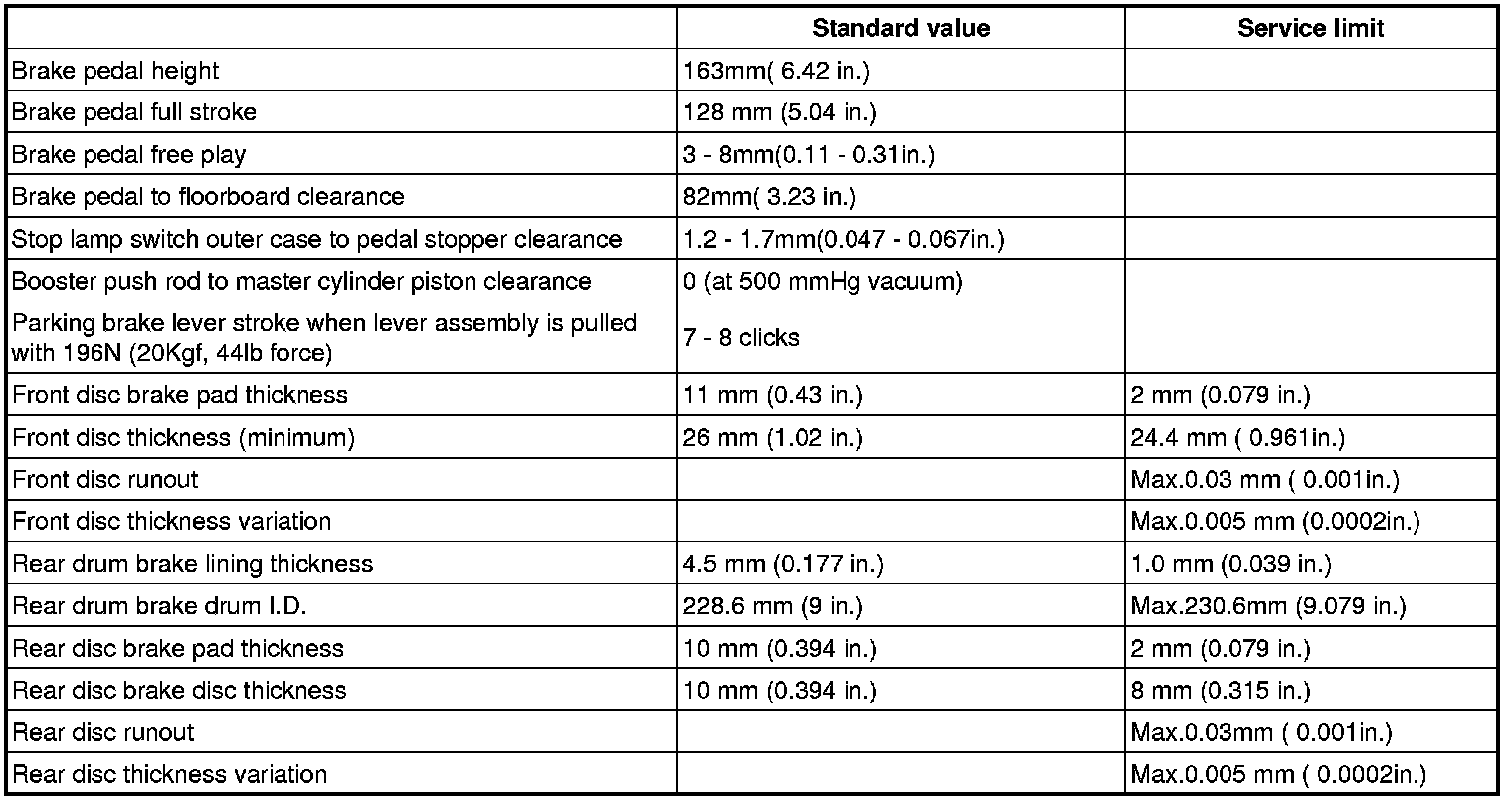

SERVICE STANDARD






TIGHTENING TORQUE

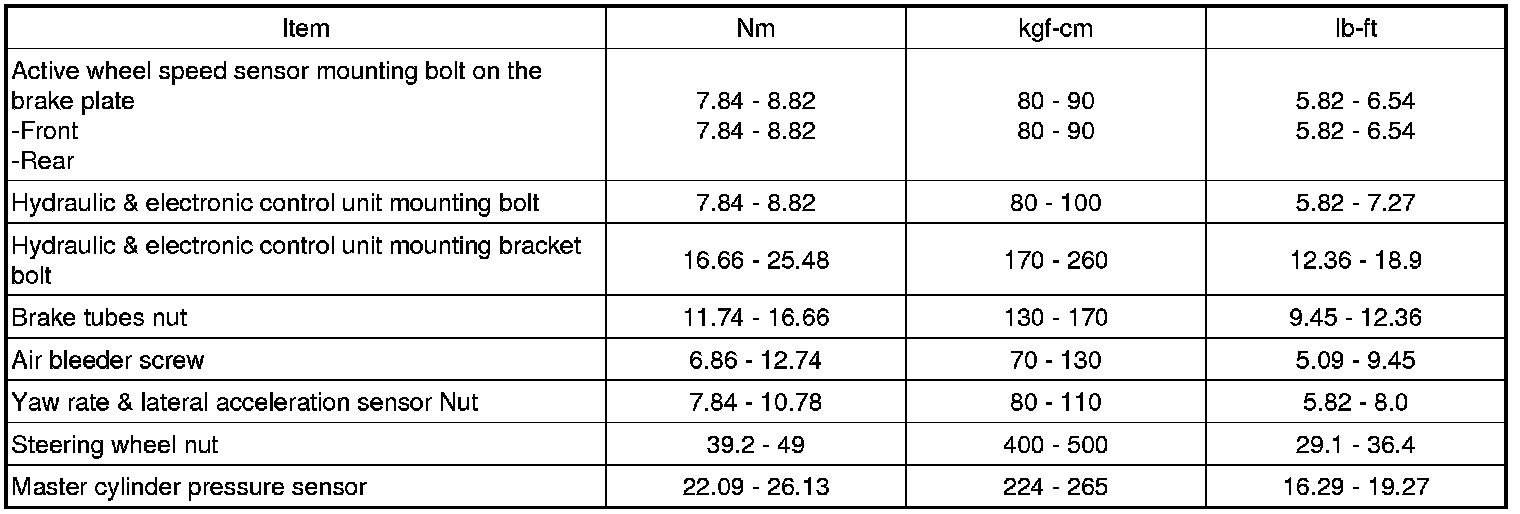

TIGHTENING TORQUE (ESC)
