Trim Panel: Service and Repair





Replacement

[General]

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.

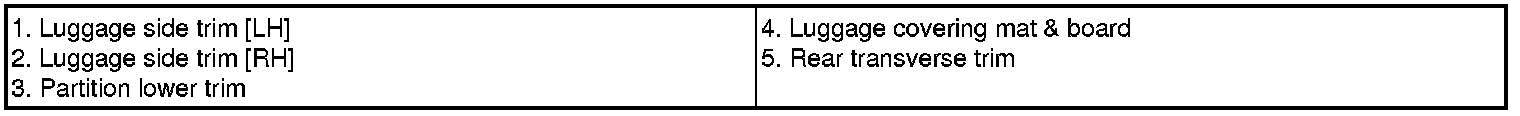

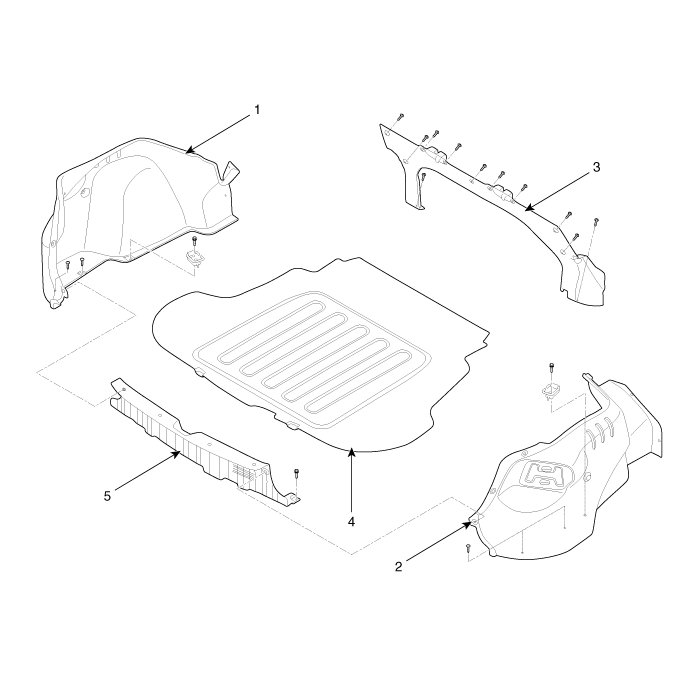

1. Remove the trunk trim.
2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.









[Seat folding]

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.

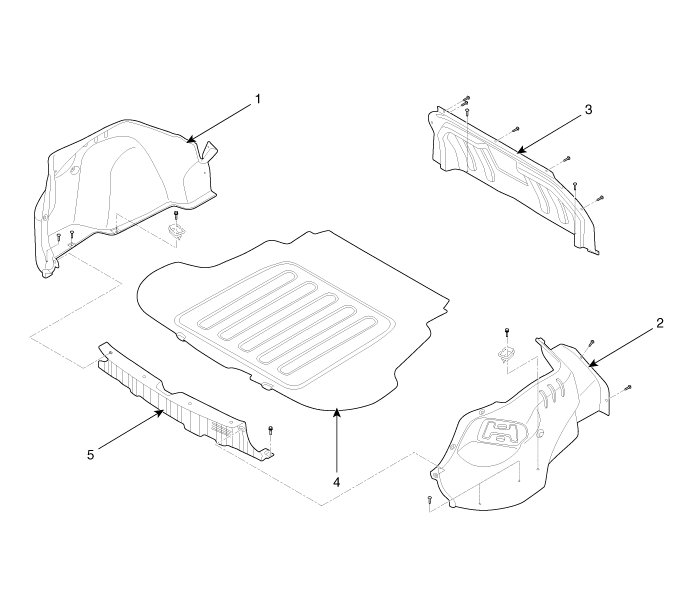

1. Remove the trunk trim.
2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
