Camshaft Position Sensor
>>
Camshaft Position Sensor #2
Camshaft Position Sensor #2

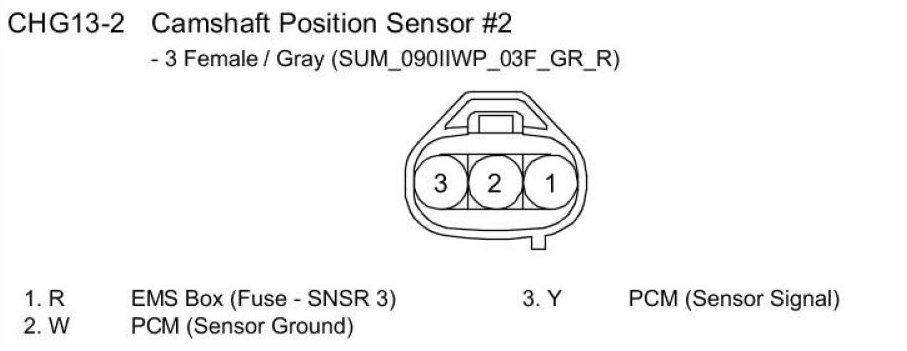

CHG13-2 Camshaft Position Sensor #2:
