Sunroof / Moonroof
>>
Sunroof / Moonroof Switch
Sunroof / Moonroof Switch

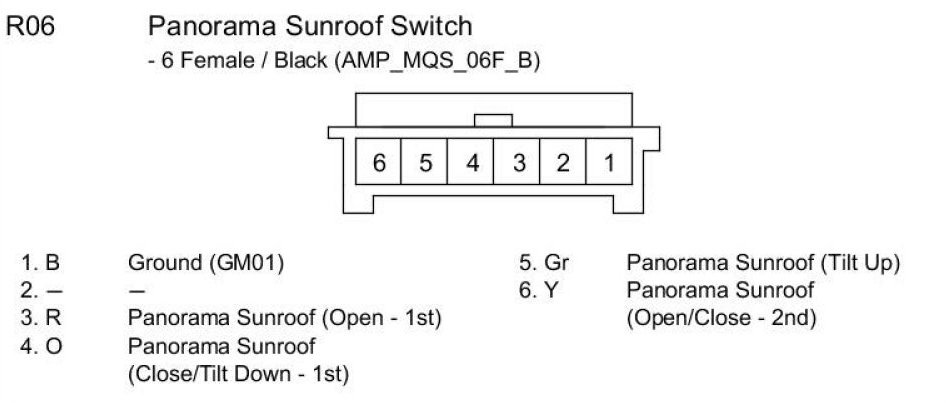

R06 Panorama Sunroof Switch:
