Starter Relay: Locations

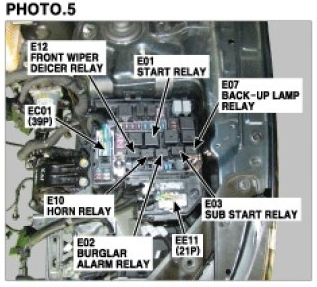

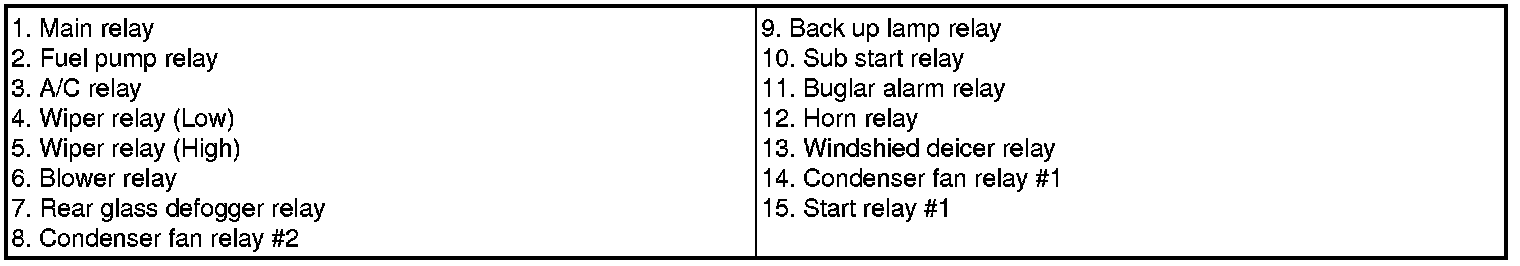

Component Location

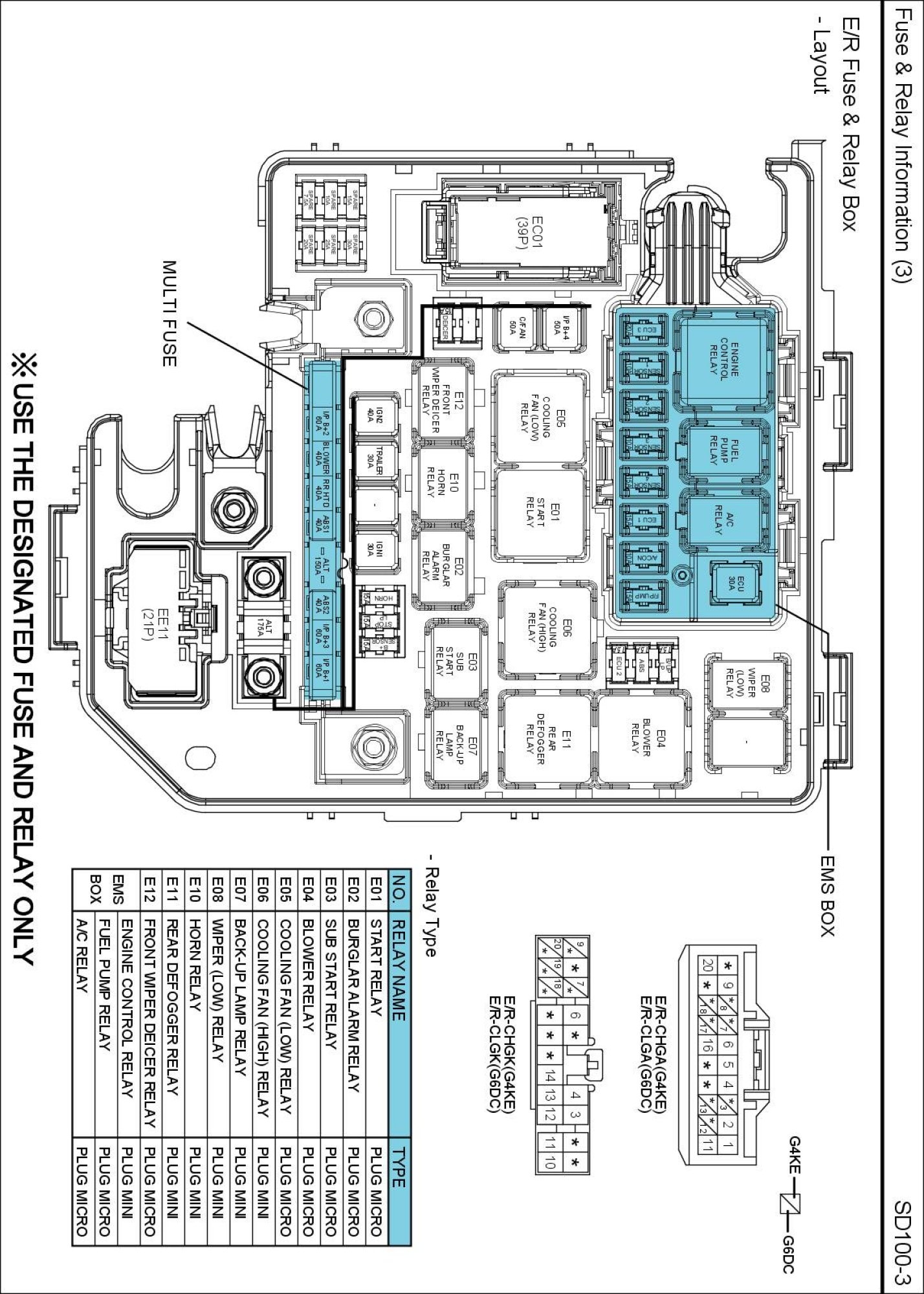

E/R Fuse And Relay Box View:

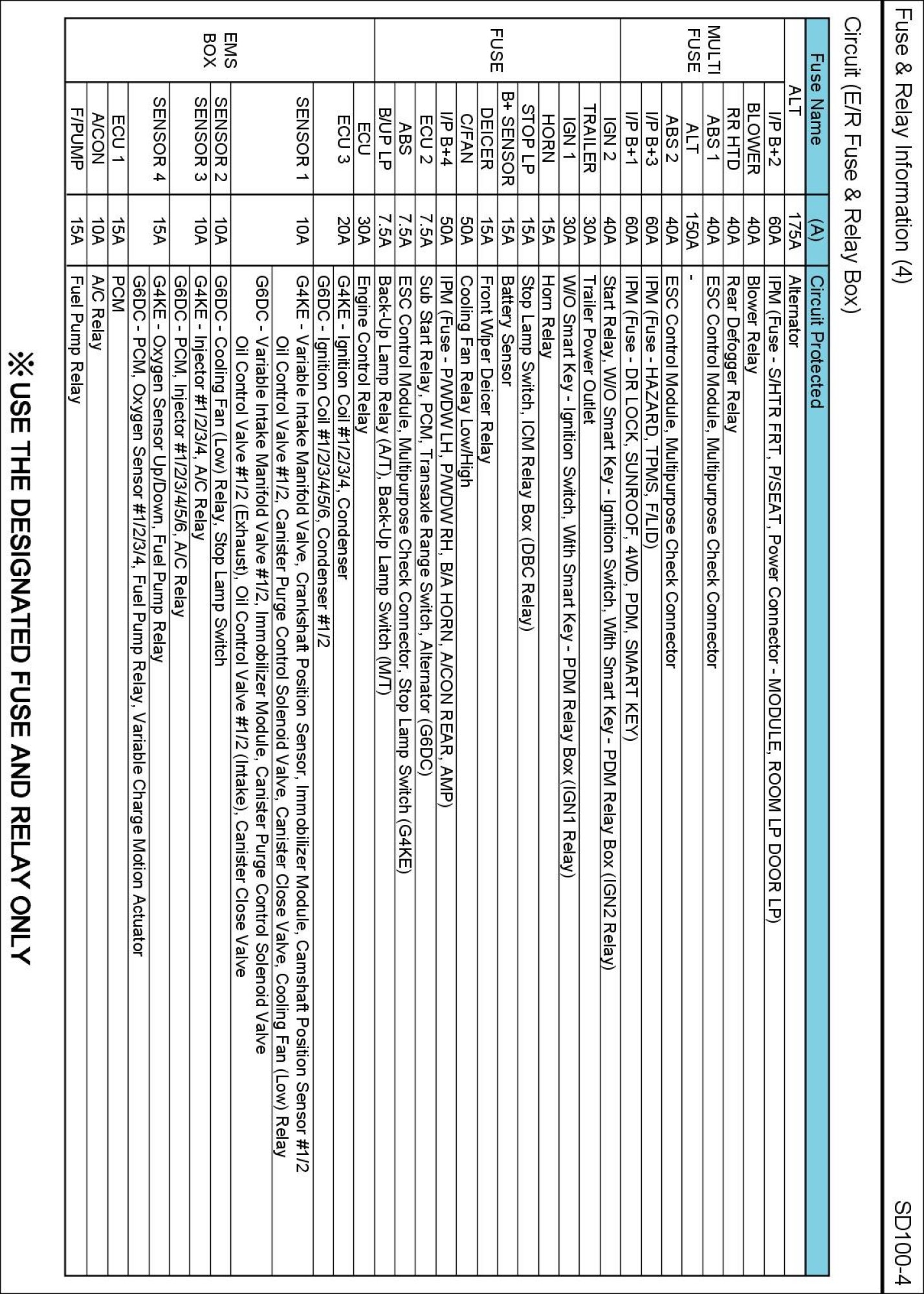

E/R Fuse And Relay Box Circuit Details:

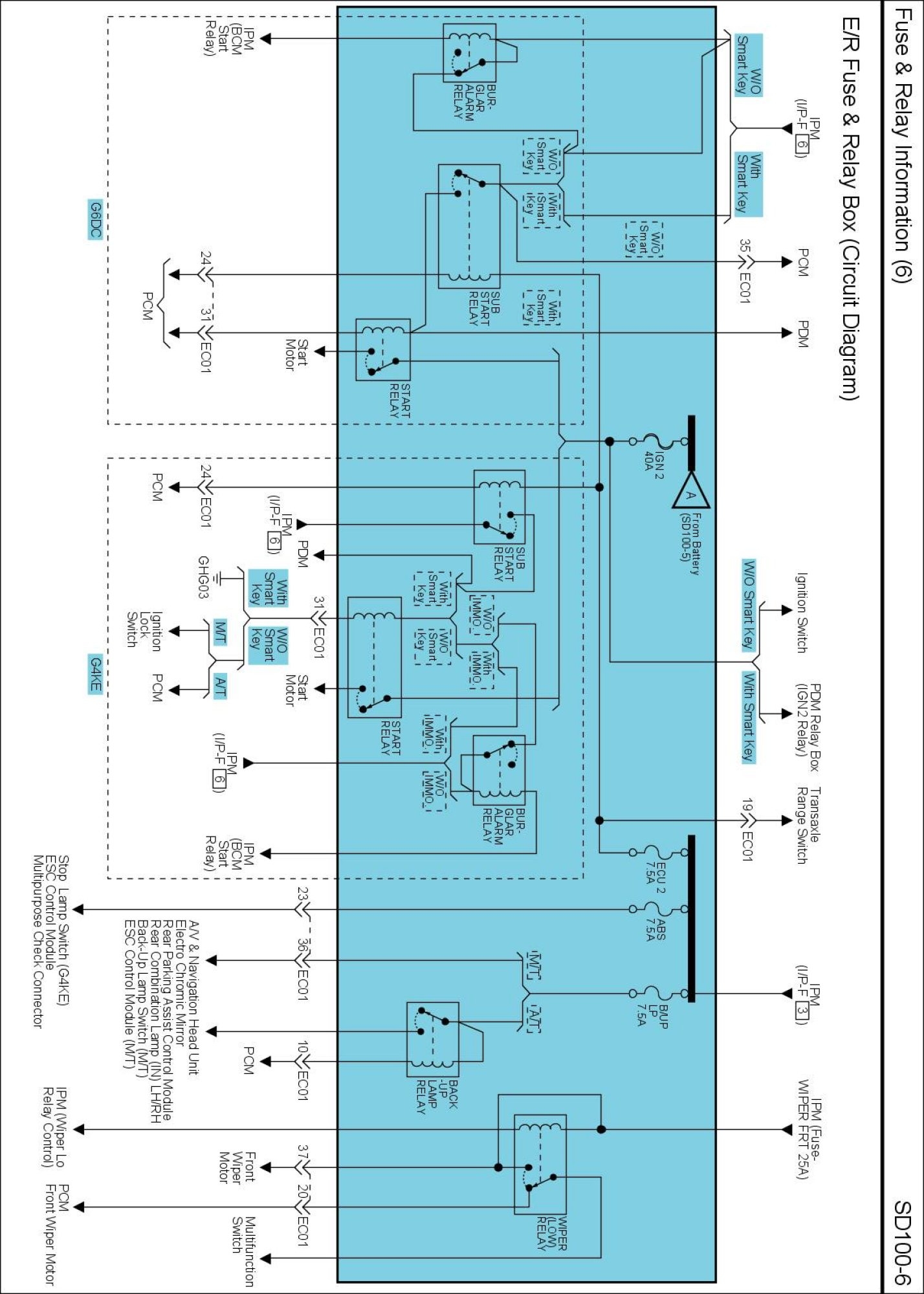

E/R Fuse And Relay Box Circuit Diagram:
