Component Inspection

P1755 EMC Over Current

Inspection/Repair - Component Inspection

Component Inspection

Check EMC
1. IG KEY OFF.
2. Disconnect EMC connector.
3. Measure resistance between EMC (+) terminal and EMC (-) terminal of EMC connector. (Components side)

Specification : About 2 - 2.6 Ohms (at 23 °C)

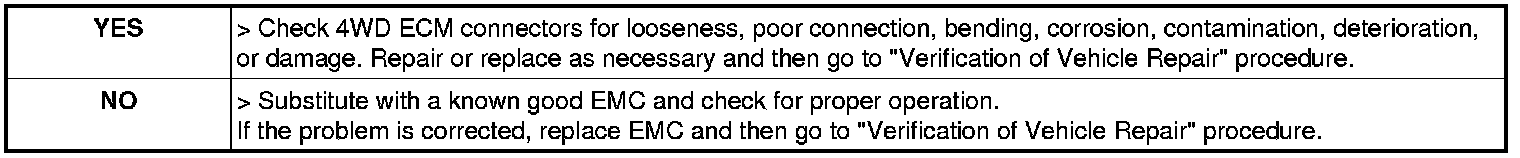

4. Is the measured value within specification?
