Front Fender: Service and Repair

Replacement

NOTE:
- When removing and installing the hood, an assistant is necessary.
- Be careful not to damage the hood and body.
- When removing the clips, use a clip remover.

1. Loosen the mud guard mounting screws.

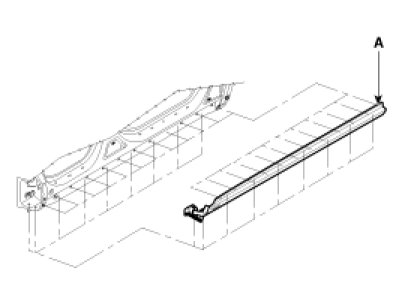

2. Loosen the mounting screws and clips, remove the side sill garnish (A).

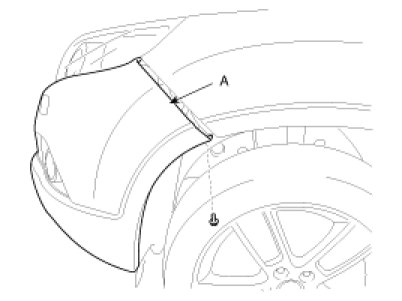

3. Loosen the bumper side's mounting screw, remove the side bumper (A).

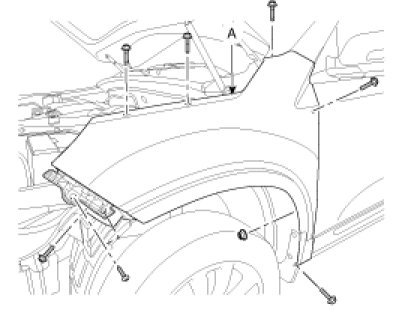

4. Loosen the fender mounting bolts and nut, screw, remove the fender (A).




5. Installation is the reverse of removal.
