Diagrams
>>
Connector Views
>>
Fluid Pump, A/T
>>
Electric Oil Pump
Electric Oil Pump

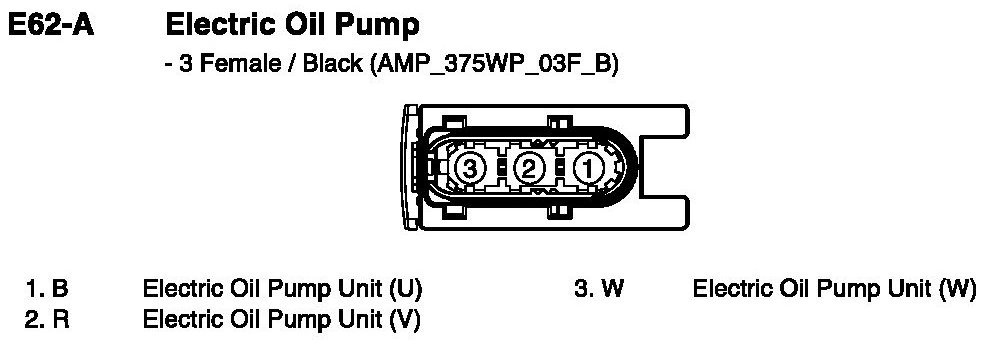

E62-A Electric Oil Pump:

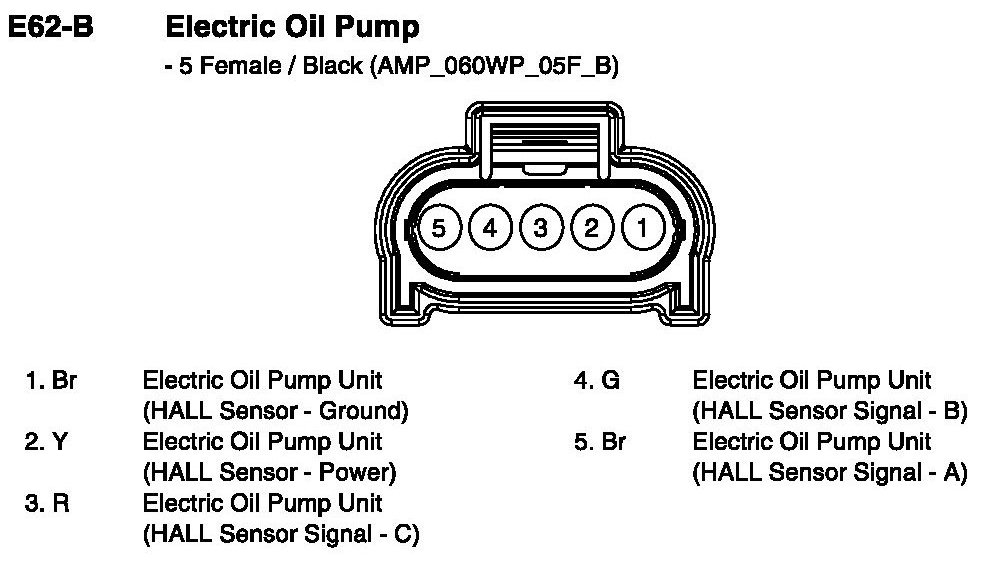

E62-B Electric Oil Pump:
