Battery System, Hybrid Drive
>>
Hybrid Battery Service Switch
Hybrid Battery Service Switch

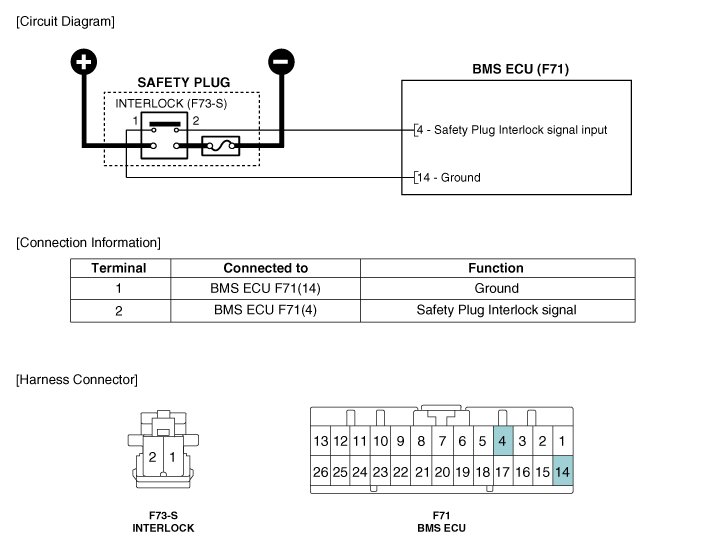

Circuit Diagram
