Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Connector Views

Connector Views

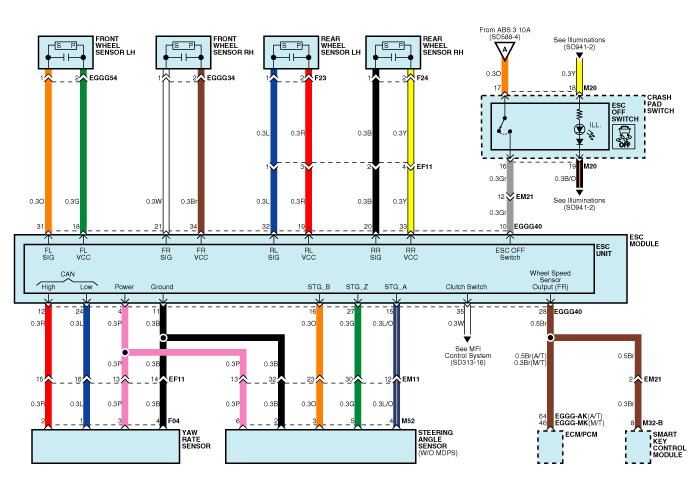

Circuit Diagram - ESC (1)

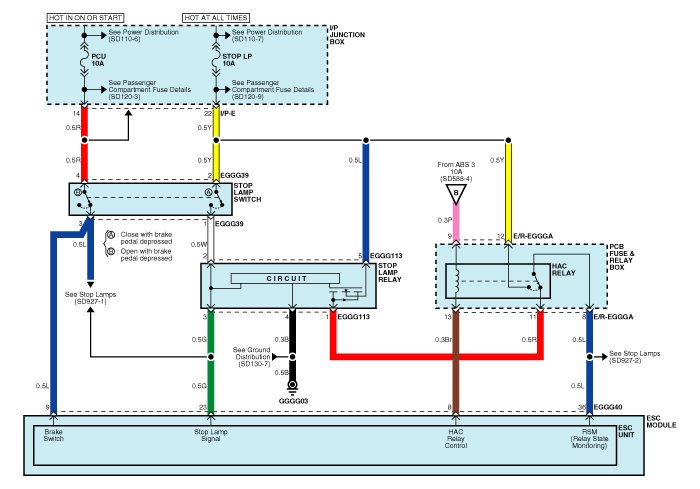

Circuit Diagram - ESC (2)

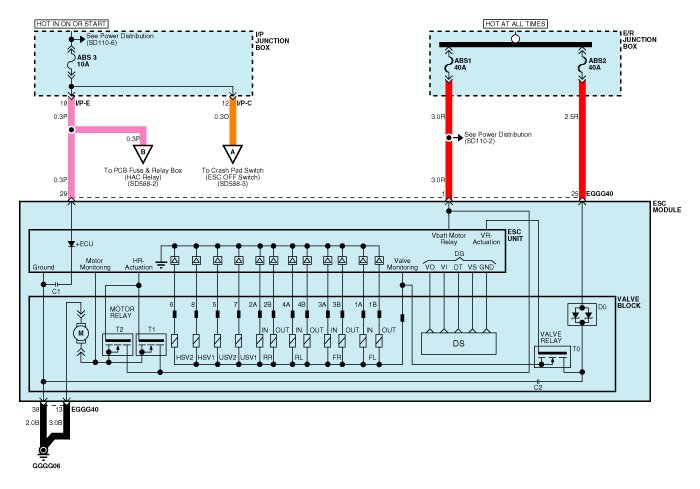

Circuit Diagram - ESC (3)

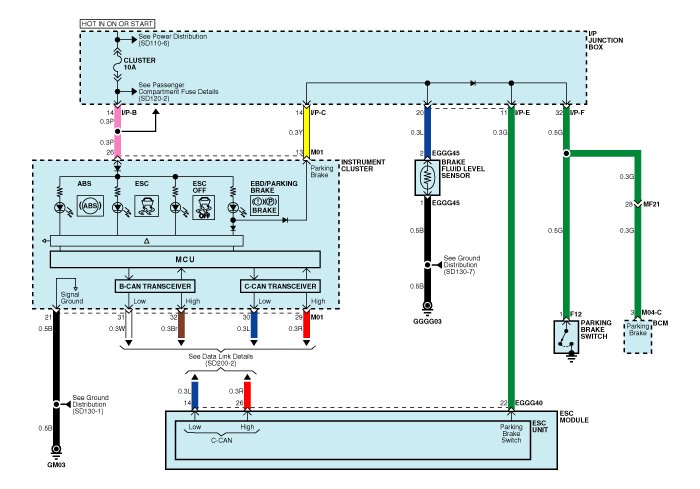

Circuit Diagram - ESC (4)

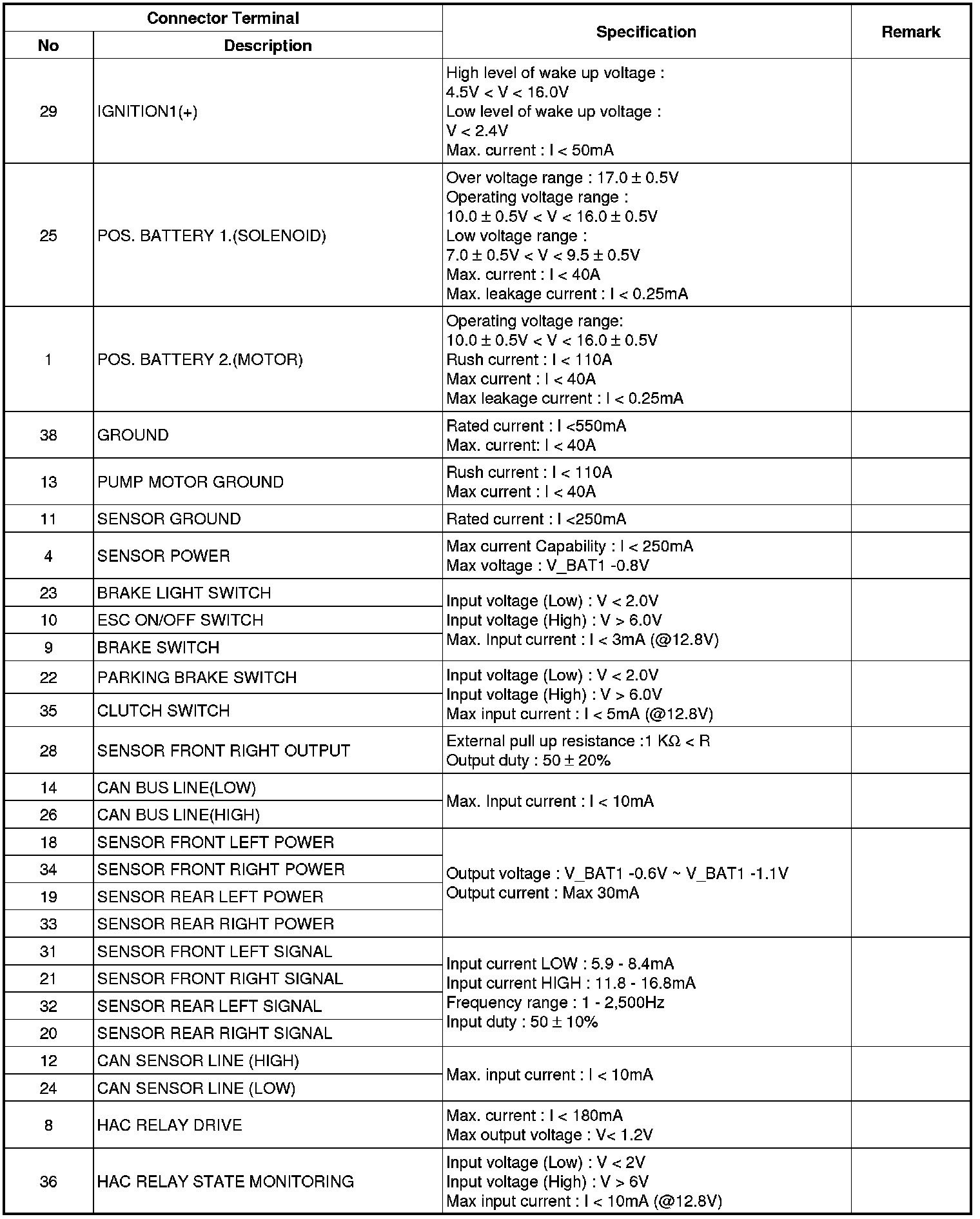

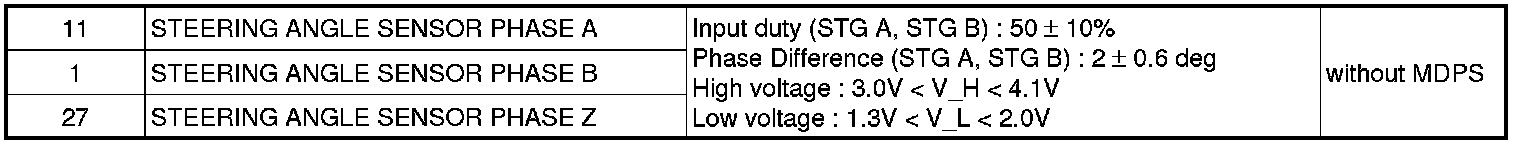

ESC connector input/output
