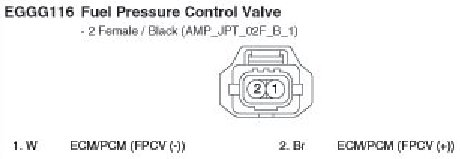

EGGG116 Fuel Pressure Control Valve
EGGG116 Fuel Pressure Control Valve
EGGG116 Fuel Pressure Control Valve:
