Instrument Panel, Gauges and Warning Indicators
>>
Service and Repair
>>
Repair Procedures
Repair Procedures

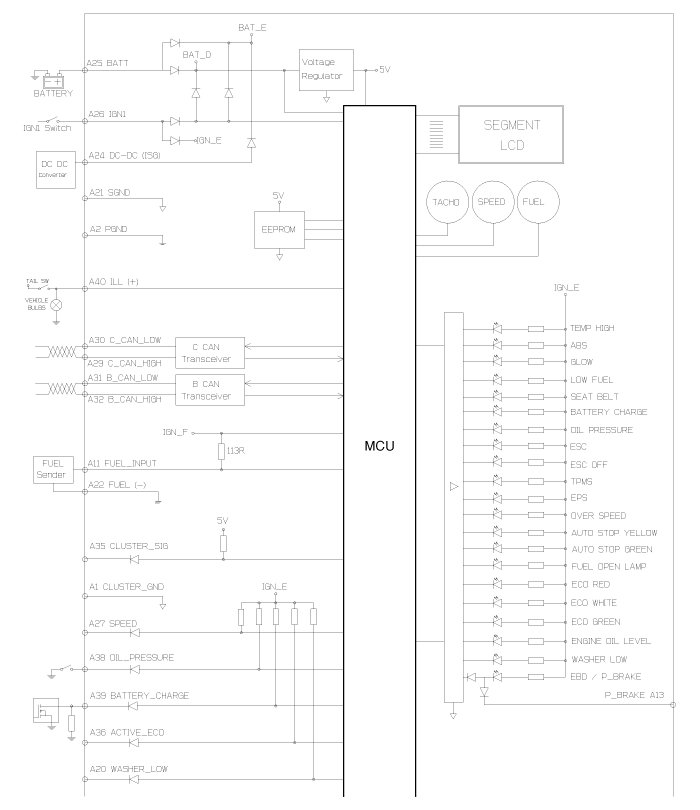

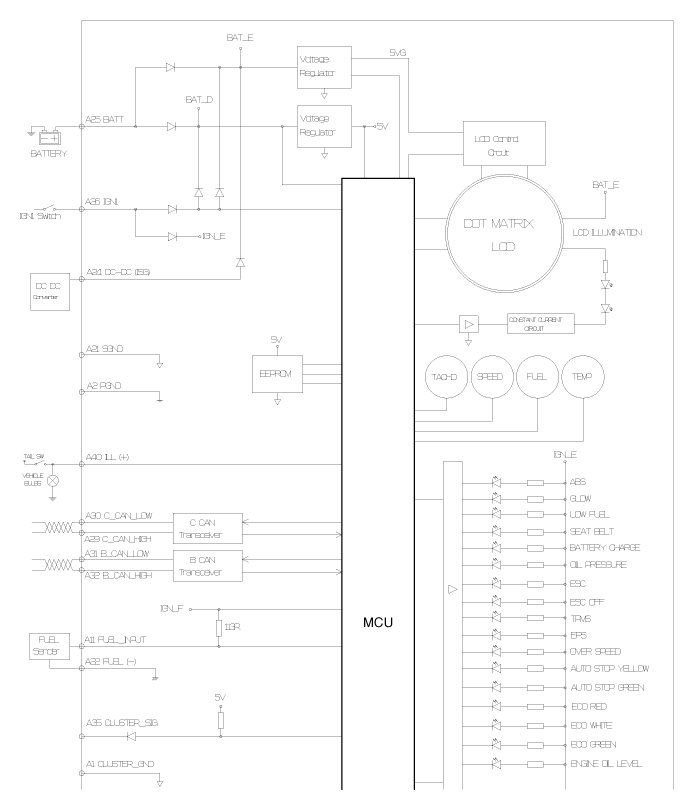

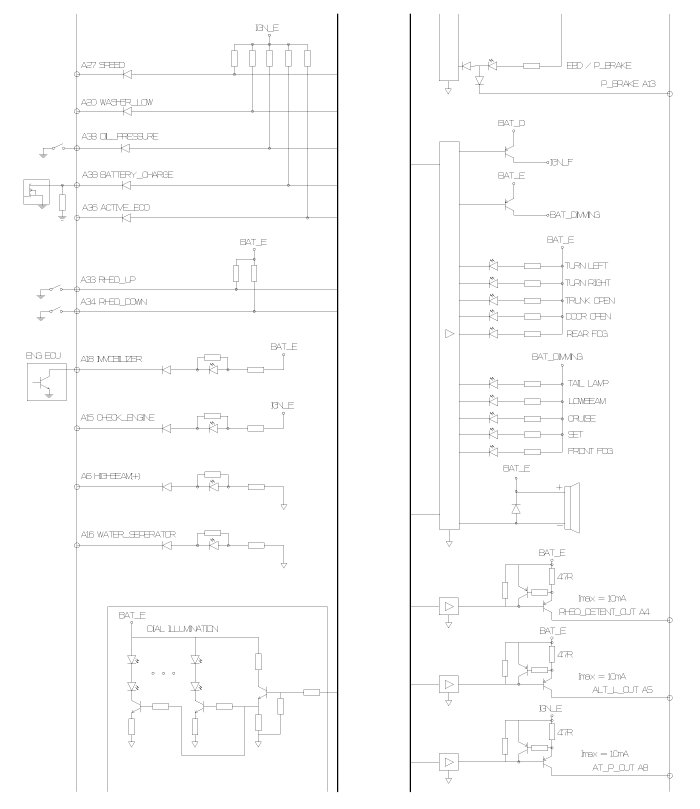

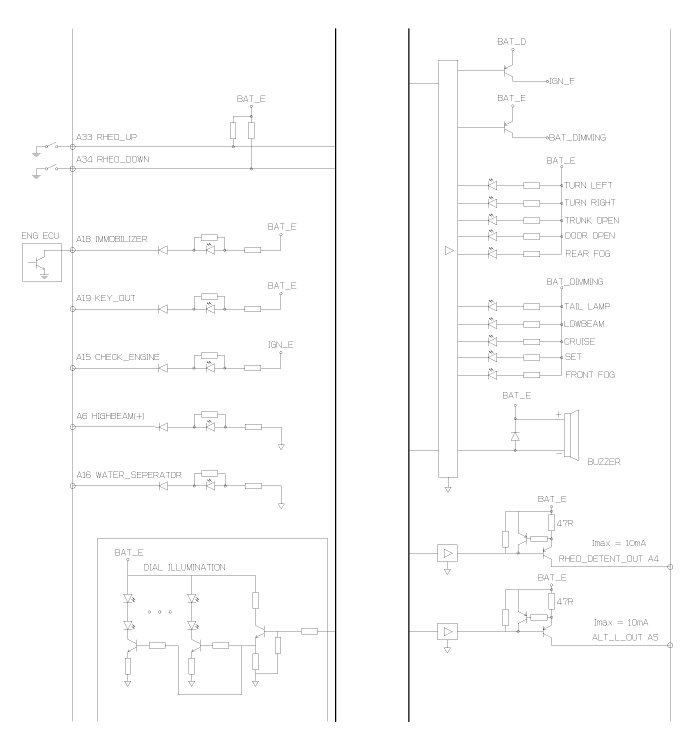

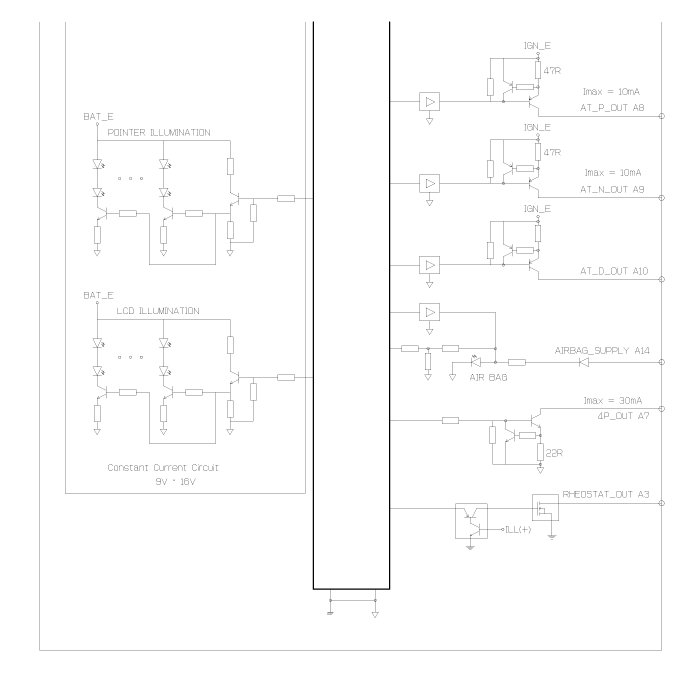

Circuit Diagram
[Standard]
[Supervision]
