Front Fender: Service and Repair

REPLACEMENT

NOTE:
- Take care not to damage the hood and body.
- When removing the clips, use a clip remover.

1. Remove the following items.
A. Headlamp assembly.
B. Front bumper.

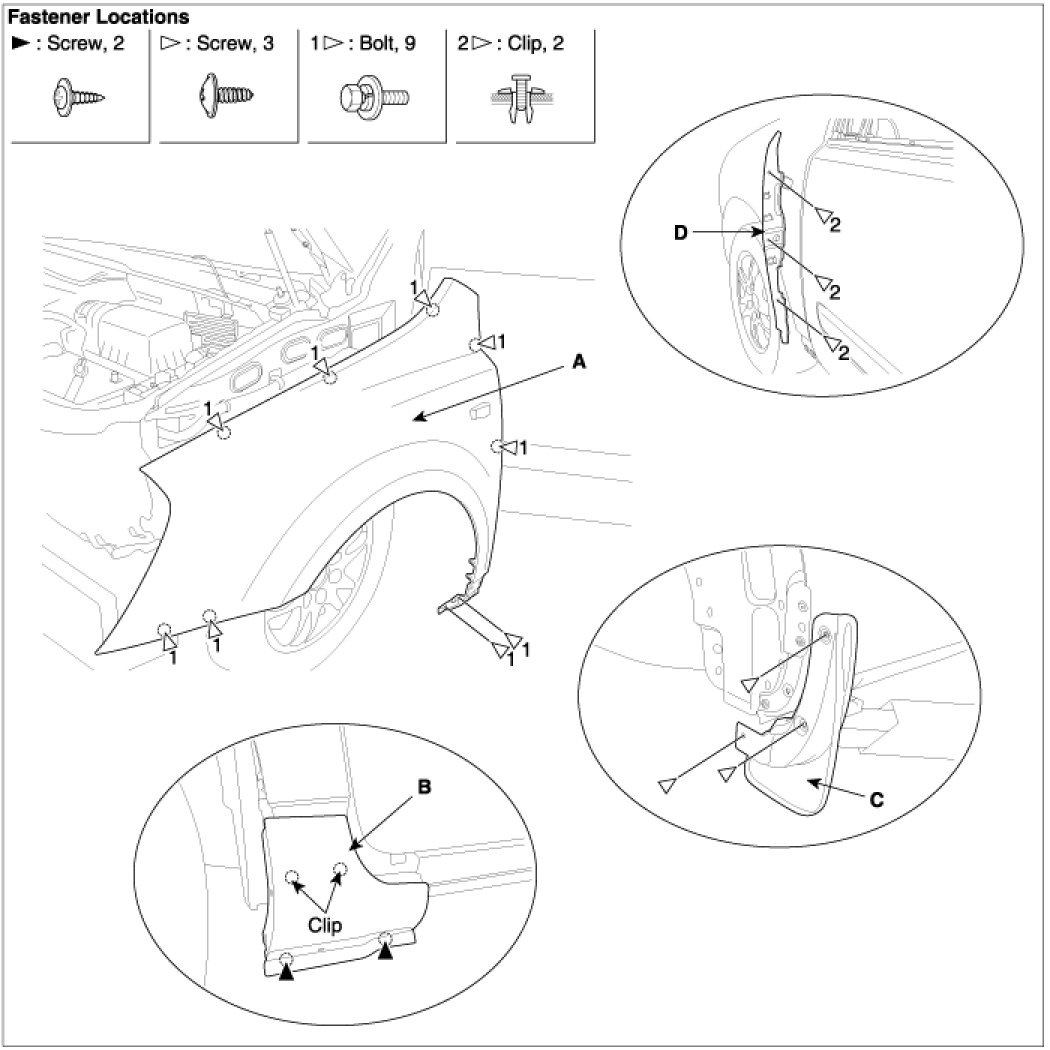

C. Side garnish (B), mud guide (C), cover (D)
2. After loosening the fender mounting bolts, remove the fender (A).
3. Installation is the reverse of removal.
