Memory Positioning Switch: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the seat back .

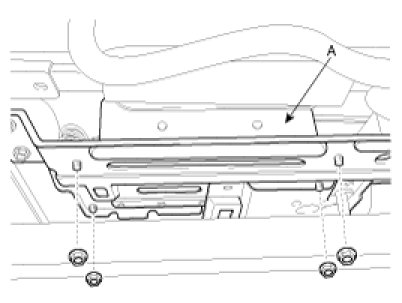

3. Remove the power seat module after removing the power seat module mounting nuts (4EA) and connector (3EA).

4. Installation is the reverse of removal.
