Timing Chain Tensioner

Timing Chain Tensioner

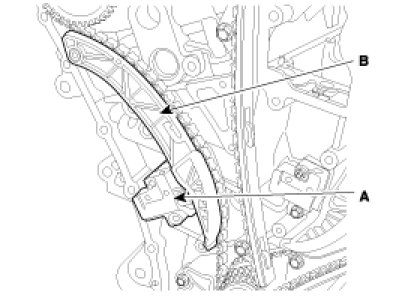

Install the LH timing chain auto tensioner (A) and LH timing chain tensioner arm (B).

Tightening torque
A 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
B 18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb-ft)

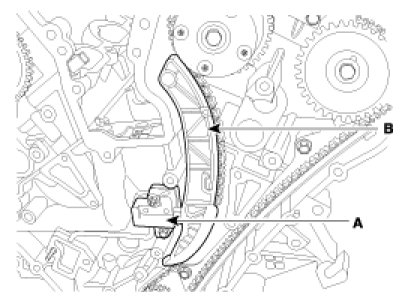

Install the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).

Tightening torque
A 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
B 18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb-ft)
